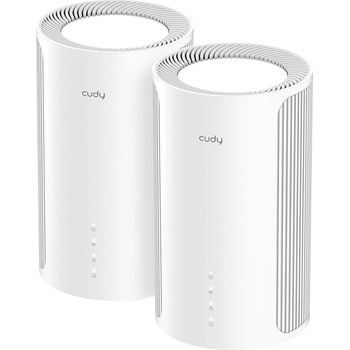

Cudy M11000 (2-Pack)



Powerful Quad-Core CPU.
Super-Responsive.

Feel the instantaneous response and smooth operation while browsing, streaming, and gaming on hundreds of devices.

The advanced Quad-Core CPU and large 512 MB RAM delivers powerful performance.

Connect More. Do More.

M11000 combines strong performance with smart management to power the entire home. From smart TVs to sensors, every device stays connected so everyone enjoys a seamless, intelligent lifestyle.

Connect 200 devices



Specifications



CPU CPU Details 1.5 GHz Quad-Core CPUMemory/Storage Flash/ROM 128 MB (1 Gbit) NAND  DDR/RAM 512 MB (4 Gbit) DDR4Wireless 6 GHz Wi-Fi Speed 5765 Mbps  5 GHz Wi-Fi Speed 4324 Mbps (240 MHz)
2882 Mbps (160 MHz)  2.4 GHz Wi-Fi Speed 688 Mbps  6 GHz Wi-Fi Streams 2 Spatial Streams  5 GHz Wi-Fi Streams 2 Spatial Streams  2.4 GHz Wi-Fi Streams 2 Spatial Streams  Wi-Fi Antennas 6× Fixed  FEM or PA/LNA

• 6 GHz: 2× High-Power
• 5 GHz: 2× High-Power
• 2.4 GHz: 2× Standard

  Beamforming    Range Performance Max: 260 m (853 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.   Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')  Indoor Coverage Reference 2 Pack: 250 m2 (2700 sq ft)
3 Pack: 350 m2 (3700 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room. Interfaces 2.5G RJ45 Ports 4  Ethernet Notes 1× WAN port, the rest are LAN ports  LED

• System
• LAN
• Wi-Fi
• Mesh

  Physical Buttons

• WPS Button
• Reset Button

  Power Interfaces DC JackPower Power Methods DC  Power Input 12V⎓2A  Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 12V⎓2A  Max Power Consumption (W) 22W  Idle Power Consumption (W) 12WReliability Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CEMechanical Installation Desktop  Dimension Φ116×202 mm
Φ4.57×7.95 inches  Product Weight 852.5 g (30.07 oz. )
