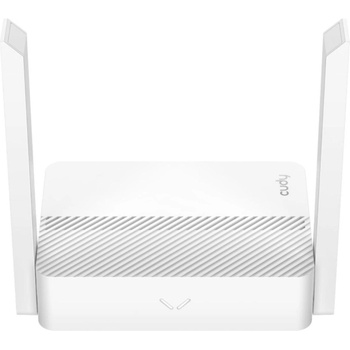

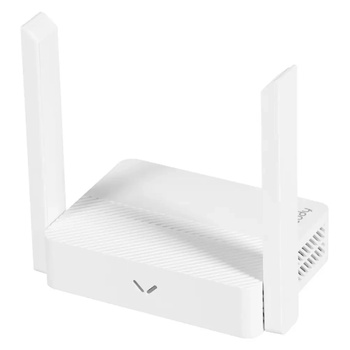

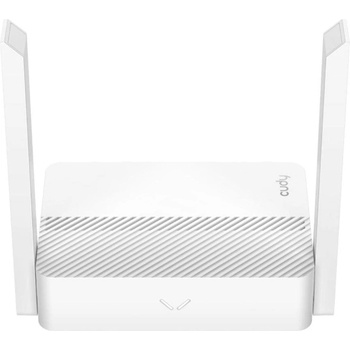

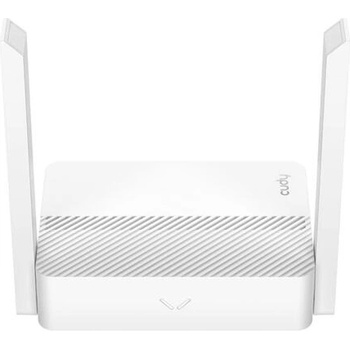

Cudy WR300



Perfect for a 100 Mbps Broadband

Shares with Wired Devices Flawlessly

One WAN port plus three LAN ports let you connect multiple devices via stable Ethernet cable without needing another network switch.

Connects 30 Devices Wirelessly

Enjoy high-speed WiFi together when your friends come with ample WiFi capacity. 2×2 MIMO enables devices to use both antennas to improve the experience.



No matter whether you want to connect to a public network expand a trusted network, or even use it as a Wi-Fi adapter (client) for your wired devices. It adapts to multiple scenarios like a breeze.



Easy to Use

An intuitive setup wizard guides you to config your new network.

Wi-Fi Schedule

Set a bedtime and a domain blacklist to regulate your children's online behaviour.

WireGuard VPN Client

Allows you to connect multiple devices at once to your private or commercial VPN.

Cudy Mesh Satellite

Works as a Mesh node with other Cudy Mesh device to enable fast roaming when moving between Wi-Fi zones.



Specifications



Hardware Specs

CPU CPU Details 580 MHz Single-Core, MIPS24KECMemory/Storage Flash/ROM 8 MB (64 Mbit ) NOR  DDR/RAM 64 MB (512 Mbit) DDR2Wireless 2.4 GHz Wi-Fi Speed 300 Mbps  2.4 GHz Wi-Fi Streams 2 Spatial Streams  Wi-Fi Antennas 2× Fixed  FEM or PA/LNA 2.4 GHz: 2× Internal  Range Performance Max: 130 m (427 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.   Wall Performance One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 10 cm (4'')Interfaces 10/100 Mbps RJ45 Ports 4  Ethernet Notes 1× WAN port, the rest are LAN ports  LED System  Physical Buttons

• WPS Button
• Reset Button

  Power Interfaces DC JackPower Power Methods DC  Power Input 5V⎓1A  Power Adapter Note Input: 100-240V~, 50/60Hz
Output: 5V⎓1AReliability Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CEMechanical Installation Desktop  Dimension Main Part:
118×80×27.5 mm
4.65×3.15×1.08 inches
Antenna:

   Product Weight 120 g (4.23 oz. )



Software Specs

Wireless Wi-Fi Standards Wi-Fi 4  Max Wi-Fi Modulation 64-QAM  Max Capacity 64  Recommended Client Upper Limit 30  Max Wi-Fi Channel Width 40 MHz  Wi-Fi Security WPA/WPA2/WPA3  Guest Network 2.4 GHz  WPS TrueGeneral Operation Modes

• Wi-Fi Router
• Access Point
• Range Extender
• WISP
• Client

  Mesh Cudy Mesh  Mesh Backhaul

• Wireless Backhaul
• Wired Backhaul

  WAN Mode

• DHCP
• Static IP
• PPPOE
• PPTP
• L2 TP

Network QoS Per-User Rate Limiting  DHCP

• Address Reservation
• DHCP Client List
• Server

  IP Versions IPv4/IPv6  IPv6 Protocols

• Relay
• Dynamic (SLAAC/DHCPv6)
• Static (Fixed IP)
• Passthrough
• 464XLAT< /li>
• MAP-E
• DS-Lite
