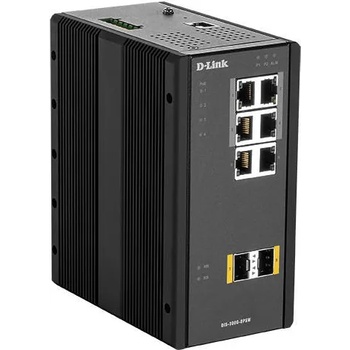

D-Link DIS-300G-8PSW

D-Link 8 Port L2 Managed Switch with 6 x 10/100/1000BaseT(X) ports (4 PoE) & 2 x 100/1000BaseSFP ports
Суич, тип: Fixed Port
Общ брой портове: 8
Основни портове, тип: 4x10/100/1000Base-T
Power Over Ethernet (PoE): Support IEEE 802.3af PoE and IEEE 802.3at PoE plus standard; PoE Power Budget: 120W
Uplink портове: 2x10/100/1000Base-T, 2xSFP
Свободни (10GB) слотове: No
Управление: Industrial-like CLI (command line interface); WEB-based Management; SNMP v1, v2c, v3; Telnet (5 sessions); FTP for Configuration Import/Export and Firmware Upgrade; HTTPs, SSH, Radius Client for Management; NTP/SNTP; DHCP (Client, Server, Relay, Snooping)
Stackable: No
Fans: Fanless design
Захранване: Input Voltage Range: 48-58 VDC (54~58V VDC for IEEE802.3at PoE/PSE application); Compatible Power Supplies: DIS-N240-48, DIS-N480-48
Routing: Layer 2 Only
MAC адреси: 8000 MAC address table size
VLAN (брой, стандарти): Port-based VLANs; MAC-based VLANs; IP Subnet-based VLANs; Protocol-based VLANs; IEEE 802.1Q tag-based VLANs; RADIUS-assigned VLAN; IEEE 802.1ad Double Tagging (Q in Q); 1024 Max VLANs
QoS: IEEE 802.1p QoS, 8 queues per port; Scheduling Schemes - SPQ, WRR; Port-based shaping; RADIUS-assigned QoS Class
L2 мрежови стандарти: IEEE 802.3, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1X, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1p
Сигурност: IP and MAC-based access control; IEEE 802.1X authentication; Network Access Control; Authentication via local database, RADIUS or TACACS+ AAA (Authentication, Accounting and Authorization); Multicast/Broadcast/Flooding Storm Control
Размери (Ш, Д, В), mm: 77 x 154 x 128
Гаранция: 60 месеца
