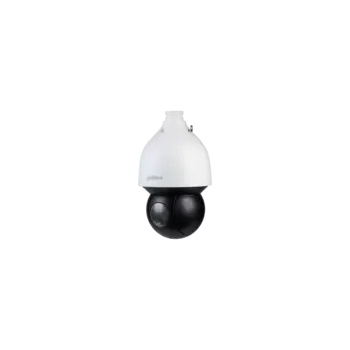

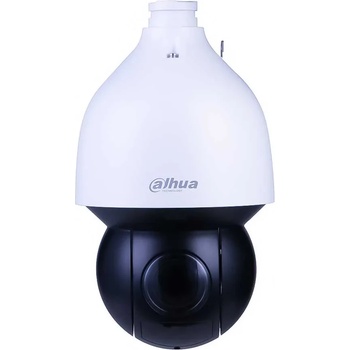

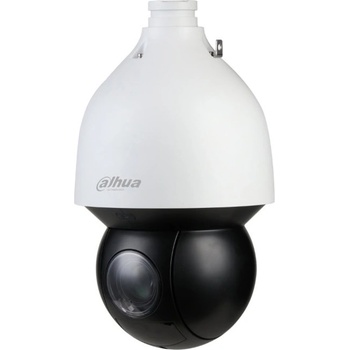

Dahua SD5A232GB-HNR

Dahua SD5A232GB-HNR

> 1/2.8" 2Megapixel STARVIS CMOS.

> 32x optical zoom.

> Starlight technology.

> Max. 50/60fps@2M.

> IR distance up to 150 m.

> Auto-tracking 3.0.

> Perimeter protection.

> Face detection.

> SMD 4.0.

> IP67, IK10.



SpecificationDetailsImage Sensor 1/2.8" CMOSPixel 2 MPMax. Resolution 1920 (H) × 1080 (V)ROM 4 GBRAM 1 GBElectronic Shutter Speed 1/1 s–1/30,000 sScanning System ProgressiveMin. Illumination Color: 0.005 lux@F1.6B/W: 0.0005 lux@F1.60 lux (IR light on)Illumination Distance 150 m (492.13 ft)Illuminator On/Off Control Zoom Prio; Manual; Smart IR; OffIlluminator Number 4 (IR)Focal Length 4.5 mm–144 mmMax. Aperture F1.6–F4.0Field of View H: 58.4°–3.0°; V: 33.4°–1.7°; D: 66.4°–3.4°Optical Zoom 32×Focus Control Auto; semi-auto; manualClose Focus Distance 0.1 m–1.5 m (0.33 ft–4.92 ft)Iris Control Auto; manualDORI Detect Distance 1986 m (6515.75 ft)DORI Observe Distance 785 m (2575.46 ft)DORI Recognize Distance 398 m (1305.77 ft)DORI Identify Distance 198 m (649.61 ft)Pan/Tilt Range Pan: 0° to 360° endlessTilt: –15° to +90°, auto flip 180°Manual Control Speed Pan: 0.1°/s–300°/sTilt: 0.1°/s–200°/sPreset Speed Pan: 400°/s; Tilt: 300°/sPreset 300Tour 8 (up to 32 presets per tour)Pattern 5Scan 5Power-off Memory YesIdle Motion Pattern; Preset; Scan; TourVideo Metadata Detects motor and non-motor vehicles, faces and human bodies. Performs tracking, snapshots, uploads, and image optimization. IVS (Perimeter Protection) Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage trackingFace Detection Detects, tracks, captures, and enhances face images. Extracts 6 attributes and 8 expressions. Supports face cutout and different capture strategies. People Counting Entrance/exit counting, area stay and queuing stats, exportable reports (day/week/month)Auto Tracking YesSMD SMD 4.0Acupick Deep learning-assisted target search across live and recorded videoAuto Patrol Triggers PTZ based on IVS rule and patrol presetsVideo Compression H. 264H; H. 264B; Smart H. 265+; H. 264; H. 265; MJPEG (Sub Stream 1); Smart H. 264+Streaming Capability 3 streamsResolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)Video Frame Rate Main: 1080p/1.3M/720p@(1-50/60 fps)Sub stream 1: D1/VGA/CIF@(1-25/30 fps)Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps)Bit Rate Control CBR/VBRVideo Bit Rate H. 264: 64 kbps–10496 kbpsH. 265: 25 kbps–6400 kbpsDay/Night Auto (ICR)/Color/B/WBLC YesWDR 120 dBHLC YesWhite Balance Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lampGain Control Auto; manualNoise Reduction 2D NR; 3D NRMotion Detection YesRegion of Interest (RoI) YesImage Stabilization Electronic (EIS)Defog ElectronicDigital Zoom 16×Image Rotation 180°Privacy Masking Up to 24 areas, with up to 8 in same viewS/N Ratio ≥ 55 dBAudio Compression PCM; G. 711a; G. 711Mu; G. 726; MPEG2-Layer2; G722.1; G729; G723Network Port RJ-45 (10/100 Base-T)Network Protocols FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARPInteroperability ONVIF (Profile S&G&T); CGI; SDKStreaming Method Unicast/MulticastUser/Host 20 users (total bandwidth: 64 M)Storage Micro SD card (Up to 512 GB); FTP; NASBrowser IE 9+; Chrome 41+; Firefox 50+; iOS 10+Management Software DSS; DMSSMobile Client iOS; AndroidCertifications CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartB, ANSI C63.4-2014UL: UL60950-1 + CAN/CSA C22.2, No. 60950-1Alarm Linkage Capture; recording; send email; preset; tour; pattern; alarm digital outputAlarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict; memory card state/space detectionAlarm I/O 2/1Audio I/O 1/1Power Supply 24 VDC, 2.5 A ± 25%; PoE+ (802.3at)Power Consumption Basic: 10 WMax: 22 W (illuminator + heater + fan)Operating Temperature –40°C to +70°COperating Humidity ≤ 95% RHProtection IP67; IK10; TVS 6000V lightning proof; surge protection; voltage transient protectionProduct Dimensions 332 mm × Φ190 mm (13.07" × Φ7.48")Net Weight 4.7 kg (10.36 lb)Gross Weight 8.0 kg (17.64 lb)
