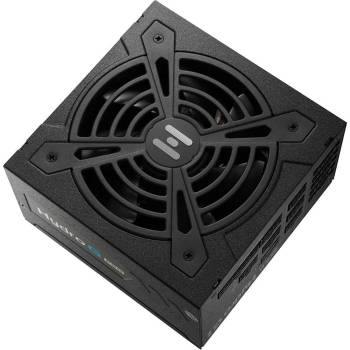

FSP Hydro G Pro 1200W 80 PLUS Gold (PPA12A1401)

Fortron Hydro G PRO ATX3.0 (PCIe5.0)





New ATX PSU Specifications

Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.









High-Power Compatibility Unleashes Maximum Performance

Enhance system performance with a native PCIe 5.0 connector and support for up to 3 PCIe 6+2Pin slots for graphic cards, as well as 2 CPU connectors. This advanced solution delivers maximum power and speed, elevating your computing experience.









80 Plus Gold Certification

Hydro G Pro series is a power supply with 80 PLUS Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.









Compatible with Latest PC-technology

Corresponds exactly to a variety of the latest CPU platform. Complies with Intel ATX12V V3.0 Power supply design guide and make sure the peak power in 12V supports for the latest Intel and AMD platform and delivers full power to your PC system.







Tech specs:

Rated Output Power 1200WForm Factor ATX80 PLUS Certification GoldInput Voltage 100-240VInput Current 15-8AInput Frequency 50-60HzPFC Active PFCEfficiency ≥90% at typical loadFan Type FDB Fan, 120mmDimensions(L x W x H) 150 x 150 x 86mmOperation Temp. 0-50℃AC/DC
AC Input

100-240Vac~  15-8A  50-60Hz (Not for China)

DC Output

+3.3V

+5V

+12V

-12V

+5Vsb

Max Output Current

20A

20A

100A

0.3A

3A

Max Combined Power

120W

1200W

3.6W

15W

Total Power

1200W

ConnectorsM B 20+4 PIN

CPU 4+4 PIN

PCIe 12VHPWR

PCIe 6+2 PIN

SATA

Molex
(PERIPHERAL)

Connectors

1

2

1

3

15
