Препоръчани оферти (3)

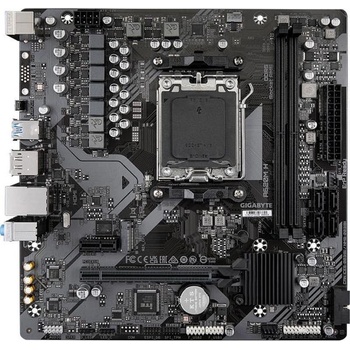

GIGABYTE A620M H 2.2
Дънна платка, gigabyte gb a620m h / am5 (a620m h 2.2)
Дънна платка GIGABYTE A620M H (AMD AM5, 2 x DDR5, 1 x M. 2, HDMI, DisplayPort) Micro ATX (A620M H 2.2)
Дънна платка GIGABYTE A620M H (AMD AM5, 2 x DDR5, 1 x M. 2, HDMI, DisplayPort) Micro ATX (A620M H 2.2)
Gb a620m h / am5 (a620m h 2.2)
Най-евтини оферти (4)
GIGABYTE A620M H 2.2
Gb a620m h / am5 (a620m h 2.2)
Дънна платка GIGABYTE A620M H, AM5, 2xDDR5, Micro ATX (A620M H 2.2)
Дънна платка GIGABYTE A620M H, AM5, 2xDDR5, Micro ATX (A620M H 2.2)
Дънна платка GIGABYTE GB A620M H / Am5, DDR5 2xDIMM, 4xSATA3 RAID, HDMI 2.1, DisplayPort 1.4, 1xM. 2 PCIe 4.0, Realtek GbE LAN, Micro ATX (A620MH2.2)
Дънна платка GIGABYTE GB A620M H / Am5, DDR5 2xDIMM, 4xSATA3 RAID, HDMI 2.1, DisplayPort 1.4, 1xM. 2 PCIe 4.0, Realtek GbE LAN, Micro ATX (A620MH2.2)
Дънна платка gb a620m h / am5 (a620m h 2.2)
Подобни продукти
Описание на продукта
Технически детайли Vendor_url:https://www. gigabyte. com/Motherboard/A620M-H-rev-10/sp#sp Graphics:Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution...
Параметри на продукта
Параметри на продукта
Описание на продукта
Технически детайли
Vendor_url:https://www. gigabyte. com/Motherboard/A620M-H-rev-10/sp#sp
Graphics:Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version. ; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3. ; ** Support for native HDMI 2.1 TMDS compatible ports.
Chipset:AMD A620
Expansion slots:1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. ; Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage:1 x M. 2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type:Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200 /4800/4400 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O:4 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x Q-Flash Plus button; 2 x USB 3.2 Gen 1 ports; 1 x DisplayPort; 1 x HDMI port; 1 x RJ-45 port; 3 x audio jacks
Connectors:1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 1 x M. 2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x Clear CMOS jumper
Audio:Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Lan:Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS:1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor:Micro ATX Form Factor; 23.0cm x 22.5cm
OS:Support for Windows 11 64-bit; Support for Windows 10 64-bit
Разширено търсене:GB A620 2xDDR5 4xSATA3 RAID HDMI DP1xM2 GLAN1xPCIEx16 1xPCIEx1 97% (663×)
Vendor_url:https://www. gigabyte. com/Motherboard/A620M-H-rev-10/sp#sp
Graphics:Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version. ; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3. ; ** Support for native HDMI 2.1 TMDS compatible ports.
Chipset:AMD A620
Expansion slots:1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; * The PCIEX16 slot can only support a graphics card or an NVMe SSD. ; Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage:1 x M. 2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type:Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200 /4800/4400 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Rear panel I/O:4 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x Q-Flash Plus button; 2 x USB 3.2 Gen 1 ports; 1 x DisplayPort; 1 x HDMI port; 1 x RJ-45 port; 3 x audio jacks
Connectors:1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 1 x M. 2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only); 1 x Clear CMOS jumper
Audio:Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
Lan:Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS:1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor:Micro ATX Form Factor; 23.0cm x 22.5cm
OS:Support for Windows 11 64-bit; Support for Windows 10 64-bit
Разширено търсене:GB A620 2xDDR5 4xSATA3 RAID HDMI DP1xM2 GLAN1xPCIEx16 1xPCIEx1
Вижте от къде можете да закупите продукта:
Дънна платка, gigabyte gb a620m h / am5 (a620m h 2.2)
Дънна платка GIGABYTE A620M H (AMD AM5, 2 x DDR5, 1 x M. 2, HDMI, DisplayPort) Micro ATX (A620M H 2.2)
Дънна платка GIGABYTE A620M H (AMD AM5, 2 x DDR5, 1 x M. 2, HDMI, DisplayPort) Micro ATX (A620M H 2.2)
Gb a620m h / am5 (a620m h 2.2)
Липсва или е неправилен важен параметър? Предоставената информация е само за ориентиране, затова ви съветваме да проверите дали предлаганият продукт има ключовите параметри от които се нуждаете, преди да купите от магазина по ваш избор. Въпреки че се стремим към максимална точност на информацията, за съжаление не можем винаги да гарантираме 100% съответствие. Цените на продуктите са с включен ДДС.
Продуктът все още няма отзиви.
