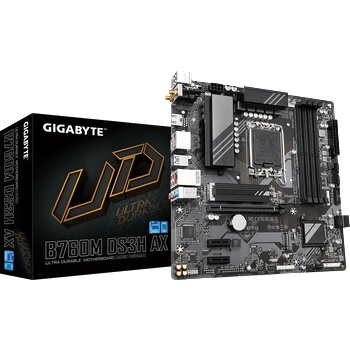

GIGABYTE B760M DS3H AX 1.3

Manufacturer GIGABYTEWireless AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0);-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;-BLUETOOTH 5.2;-Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate;Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1);-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;-BLUETOOTH 5.3;-Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate;Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2);-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;-BLUETOOTH 5.3;-Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate;Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3);-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;-BLUETOOTH 5.3;-Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate;(Actual data rate may vary depending on environment and equipment. )Memory type Support for DDR5 7600(O. C. ) /7400(O. C. ) /7200(O. C. ) /7000(O. C. ) /6800(O. C. ) /6600(O. C. ) / 6400(O. C. ) / 6200(O. C. ) / 6000(O. C. ) / 5800(O. C. ) / 5600(O. C. ) / 5400(O. C. ) / 5200(O. C. ) / 4800 / 4000 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information. )Features Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. ;Support for Q-Flash;Support for Q-Flash PlusCPU's supported LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU;(Please refer "CPU Support List" for more information. )Chipset Intel® B760 Express ChipsetGraphics Integrated Graphics Processor-Intel® HD Graphics support;-1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3. ;** Support native HDMI 2.1 TMDS compatible ports. ;-1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3;-1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version. ;(Graphics specifications may vary depending on CPU support. );Support for up to triple-display at the same timeExpansion Slots CPU;-1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. ;Chipset;-2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1Storage CPU;-1 x M. 2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset;-1 x M. 2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);-4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesI/O Chipset;-1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support;-5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);-2 x USB 2.0/1.1 ports on the back panel;Chipset+2 USB 2.0 Hubs;-4 x USB 2.0/1.1 ports available through the internal USB headersConnectors iTE® I/O Controller Chip;1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;3 x system fan headers;1 x addressable LED strip header;1 x RGB LED strip header;2 x M. 2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only);1 x S/PDIF Out header;1 x Q-Flash Plus button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors: 2 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;2 x SMA antenna connectors (2T2R);1 x HDMI port;2 x DisplayPorts;3 x USB 3.2 Gen 1 ports;1 x USB Type-C® port, with USB 3.2 Gen 2 support;1 x RJ-45 port;3 x audio jacksAudio Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. ;Support for S/PDIF OutLAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)BIOS 1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Form Factor Micro ATX Form Factor; 24.4cm x 24.4cmOS Support for Windows 11 64-bit;Support for Windows 10 64-bitWarranty 36 Months
