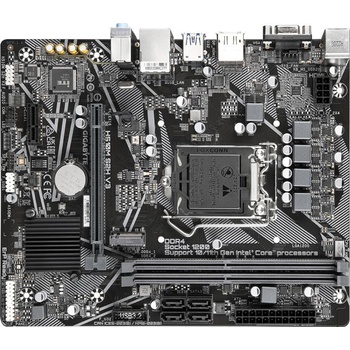

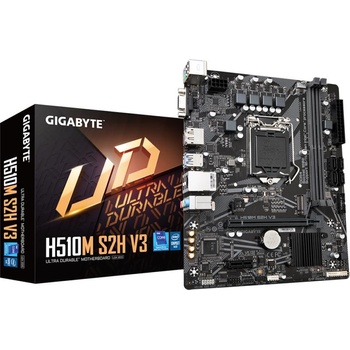

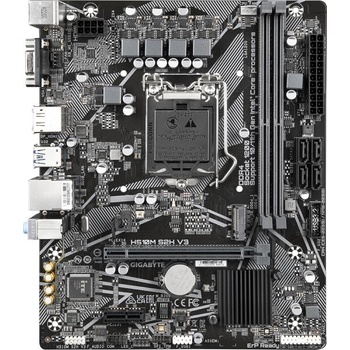

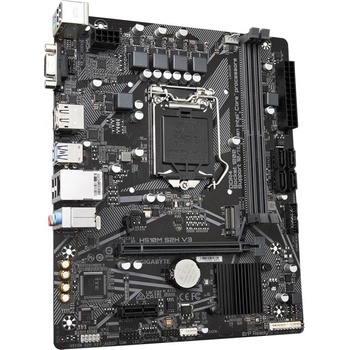

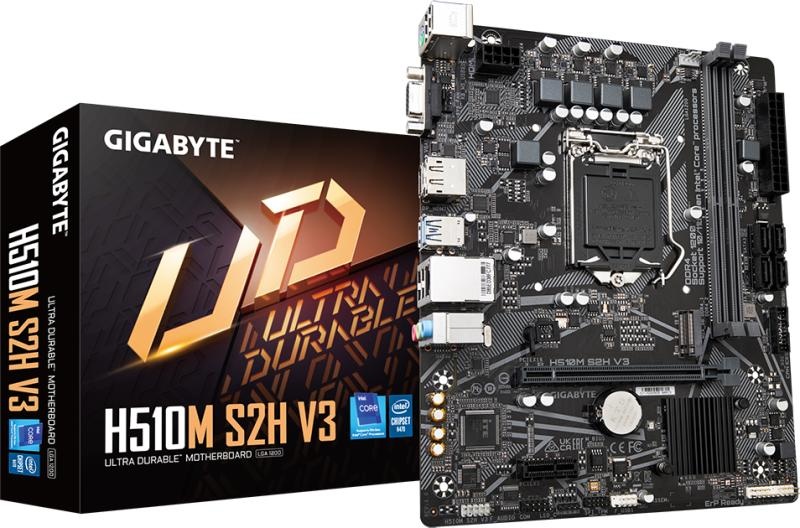

GIGABYTE H510M S2H V3

Gigabyte H510 S2H V3 (rev 1.0)

Tech specs:

• CP U

  LGA1200 package:

  • 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
  • 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
  • L3 cache varies with CPU



• C hipset
  • Intel H470 Express Chipset

• Memory

  11th Generation Intel Core i9/i7/i5 processors:
  Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
• 10th Generation Intel Core i9/i7 processors:
  Support for DDR4 2933/2666/2400/2133 MHz memory modules
• 10th Generation Intel Core i5/i3/Pentium/Celeron processors:
  Support for DDR4 2666/2400/2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Expansion Slots

CPU:

• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16



Chipset:

• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• < p>Storage Interface

  Chipset :

  • 1 x M. 2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
  • 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
* Supported with an additional PCIe to M. 2 NVMe SSD adapter card
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

• U SB

  Chipset:

  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x RGB LED strip header
  • 1 x M. 2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper

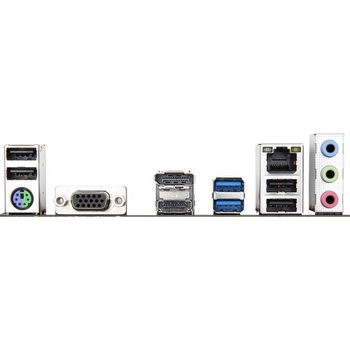

< li>Back Panel Connectors
• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x DisplayPort
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

I/O Controller
• iTE I/O Controller Chip

• BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit

< li>Form Factor
• Micro ATX Form Factor; 22.6cm x 18.5cm
