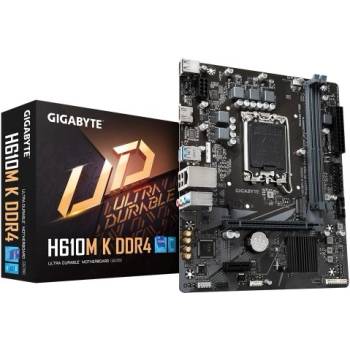

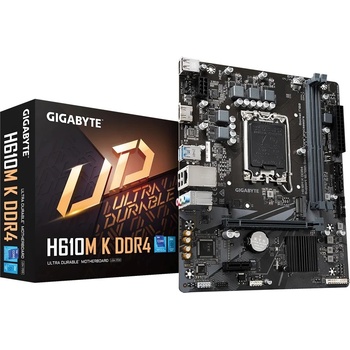

GIGABYTE H610M K DDR4 2.0 Дънни платки
GIGABYTE H610M K DDR4 2.0 Дънни платки
от 57,14 €
2 оферти
Оферти за GIGABYTE H610M K DDR4 2.0
Офертите за продукта
Още подобни стоки от най-популярните
Други стоки марка GIGABYTE: GIGABYTE Дънни платки
от 62,88 €
BIOSTAR H81MHV3
72,99 €
ASRock B450M-HDV
74,99 €
ASRock B450M-HDV R4.0
100,11 €
ASUS PRIME B460M-K
Описание, детайли - GIGABYTE H610M K DDR4 2.0
Ценова графика
Така ще разберете кога се променя цената на стоката.
Известие за цена
Услугата Известие за цена Ви уведомява, когато цената на стоката падне под избраната стойност.
Най-ниска актуална цена: 57,14 €
Описание
Изходи | |
| D-SUB | Не |
| DVI | Не |
| HDMI | Да |
| DisplayPort | Не |
Още параметри | |
| Интегрирана звукова карта | Да |
| Аудио канали | 7.1 |
| Формат | microATX |
Виждате грешка в описанието или таблицата? Сигнализирайте ни!
Технически детайли
Memory type:Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
CPU's supported:LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors*; L3 cache varies with CPU
Chipset:Intel® H610 Express Chipset
Graphics:Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version and HDCP 2.3.
Expansion Slots:CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage:Chipset: 1 x M. 2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support); 2 x SATA 6Gb/s connectors
I/O:1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Connectors:1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x M. 2 Socket 3 connector; 2 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x Clear CMOS jumper
Audio:Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN:Realtek® GbE LAN chip (1 Gbps/100 Mbps)
BIOS:1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor:Micro ATX Form Factor; 22.6cm x 18.5cm
OS:Support for Windows 11 64-bit; Support for Windows 10 64-bit
Сайт на производителя:https://www. gigabyte. com/Motherboard/H610M-K-DDR4-rev-10/sp#s p
Разширено търсене:GB H610 2xDDR4 2xSATA3HDMI1xM2 GLAN1xPCIEx16 1xPCIEx1
Продукт известен още и като H 610 M K DDR 4 2 0, H610MKDDR420, H 610M K DDR4 2.0, H61 0M K DDR4 2. 0
Memory type:Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
CPU's supported:LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors*; L3 cache varies with CPU
Chipset:Intel® H610 Express Chipset
Graphics:Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version and HDCP 2.3.
Expansion Slots:CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage:Chipset: 1 x M. 2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support); 2 x SATA 6Gb/s connectors
I/O:1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Connectors:1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x M. 2 Socket 3 connector; 2 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x Clear CMOS jumper
Audio:Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN:Realtek® GbE LAN chip (1 Gbps/100 Mbps)
BIOS:1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor:Micro ATX Form Factor; 22.6cm x 18.5cm
OS:Support for Windows 11 64-bit; Support for Windows 10 64-bit
Сайт на производителя:https://www. gigabyte. com/Motherboard/H610M-K-DDR4-rev-10/sp#s p
Разширено търсене:GB H610 2xDDR4 2xSATA3HDMI1xM2 GLAN1xPCIEx16 1xPCIEx1
Продукт известен още и като H 610 M K DDR 4 2 0, H610MKDDR420, H 610M K DDR4 2.0, H61 0M K DDR4 2. 0
