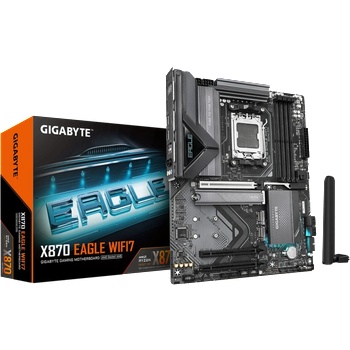

Description X870 EAGLE WIFI7 1.1Manufacturer GIGABYTEWireless Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1);- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard;(Actual data rate may vary depending on environment and equipment. );* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10. );** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. Memory type Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to Memory Support List on GIGABYTE's website for more information. )Features Support for GIGABYTE Control Center (GCC);* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. ;Support for Q-Flash;Support for Q-Flash Plus;Support for Smart BackupCpu's supported AMD Socket AM5, support for;-AMD Ryzen 9000 Series Processors/;-AMD Ryzen 8000 Series Processors/;-AMD Ryzen 7000 Series Processors;(Go to GIGABYTE's website for the latest CPU support list. )Chipset AMD X870Graphics Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4® Controller;- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and HDR. ;Integrated Graphics Processor with AMD Radeon Graphics support;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR. ;** Support native HDMI 2.1 TMDS compatible ports. ;(Graphics specifications may vary depending on CPU support. )Expansion slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU;-AMD Ryzen 900/7000 Series Processors support PCIe 5.0 x16 mode;-AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;-AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. ;Chipset;- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)Storage 1 x M. 2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs;-AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;-AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M. 2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs;1 x M. 2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs;* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector. ;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;* RAID 5 is only available on AMD Ryzen 9000 Series Processors. ;RAID 0, RAID 1, and RAID 10 support for SATA storage devicesI/o CPU+ASMedia USB4® controller;- 2 x USB4® USB Type-C® ports on the back panel;CPU;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;- 1 x USB 3.2 Gen 1 port on the back panel;CPU+USB 2.0 Hub;- 4 x USB 2.0/1.1 ports on the back panel;Chipset;- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);- 4 x USB 2.0/1.1 ports available through the internal USB headersConnectors iTE® I/O Controller Chip;1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x 4-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;4 x system fan headers;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;4 x SATA 6Gb/s connectors;3 x M. 2 Socket 3 connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x power button;1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors: 1 x Q-Flash Plus button;2 x antenna connectors (2T2R);1 x HDMI port*;2 x USB4® USB Type-C® ports (DisplayPort*);1 x USB 3.2 Gen 2 Type-A port (red);3 x USB 3.2 Gen 1 ports;4 x USB 2.0/1.1 ports;1 x RJ-45 port;3 x audio jacks;* Actual support may vary by CPU. Audio Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settingsLan Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Bios 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Form factor ATX Form Factor; 30.5cm x 24.4cmOs Support for Windows 11 64-bitWarranty 36 Months

Продукт известен още и като X 870 EAGLE WIFI 7 1 1, X870EAGLEWIFI711, X 870 EAGLE WIFI7 1.1
