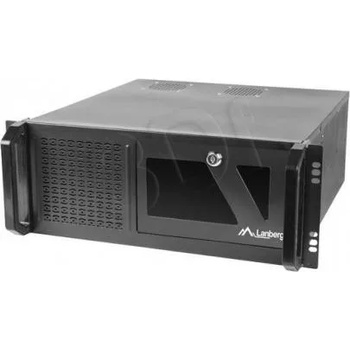

Lanberg SC01-4504-08B

Lanberg’s 19" server chassis SC01-4504-08B designed for 19" rack cabinets.

Product specification:

- Supported motherboard sizes: ATX, Micro-ATX, Mini-ATX,
- Height: 4U,
- Depth: 450mm,
- Steel thickness: 0.8mm,
- Server chassis material: SPCC,
- Amount of 3.5" internal bay slots: 6,
- Amount of 3.5" external bay slots: 1,
- Amount of 5.25" external bay slots: 3,
- Fans on the housing: 2; 8x8cm,
- Fans at the front: 1; 12x12cm (optional),
- Fans at the back: 2; 8x8cm (optional),
- USB 2.0 connectors on the front panel: 2,
- 3.5mm mini jack connectors on the front panel: 2,
- Switches: power, reset,
- LEDs: power, sleep mode, HDD,
- Amount of extension card slots: 7,
- Expansion card slot type: standard PCI plugs,
- The color of the external panel: black,
- Operating temperature: 0-50C,
- Storage humidity: 5-95%
- Dimensions (L x W x H): 450 x 430 x 177mm.

Additional features:

- 14 holes for fixing pressure plates for expansion cards,
- Removable front dust filter (included),
- Lockable front panel (keys included).
