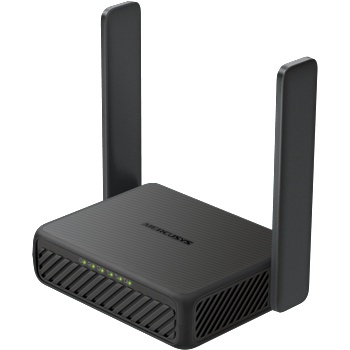

Mercusys MB113-4G

Mercusys MB113-4G

300 Mbps Wireless 4G LTE Portable Router



• 4G Network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps.
• 300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network .
• Easy Portability – Phone-sized with foldable antennas, MB113-4G slips easily into a bag or even your pocket.
• Support Power Bank – With its USB-C port, MB113-4G also supports power bank charging .
• Plug a SIM Card and Play – No configurations needed, compatibility of SIM cards are assured by years of field tests .
• Dual-Mode VPN Router - One device, two modes: Client Mode encrypts your entire home network; Server Mode lets you access home devices remotely.
• Wi-Fi Router Mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.

       *Notes: Make sure your SIM card is unlocked.



Get WiFi Where You Need It

Enjoy unmatched convenience and versatility with fast, stable WiFi whether you're at home or working remotely.



Portable Wi-Fi, In Your Pocket

Phone-sized with foldable antenna, MB113-4G slips easily into a bag or even your pocket.





USB-C Powered, Support Power Bank

With its USB-C port, MB113-4G also supports power bank charging. Power it anywhere, even on the go without a power socket.





Available WAN Connection Backup

With a fully functional WAN/LAN port, MB113-4G can work as a router that is compatible with cable, fiber, and DSL modems, or provide internet for wired devices.





hare the WiFi with Friends

A remarkable number of wireless gadgets are compatible with this 4G router without any issues. Up to 32 simultaneous connections for tablets, laptops, mobile phones, and other devices.





LTE Standard Cat 4
150/50 Mbps DL/ULNetwork Type EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)Wi-Fi Class N300Wi-Fi (2.4 GHz) 300 MbpsБезжични стандарти IEEE 802.11b/g/nЧестота 2.4 GHzMax Channel Width 40 MHzЧувствителност на приемане 11b 11 Mbps: -87.5 dBm
11g 54 Mbps: -74 dBm
11n HT20 MCS7: -71 dBm
11n HT40 MCS7: -69 dBmMAX Capacity 32Recommended Clients Limit 16Max Wi-Fi Modulation MCS7Безжична сигурност WPA-PSK / WPA2-PSKБезжични функции Smart connect
WPS
Wireless Schedule
Wireless Clients StatisticsSecurity IPv4 SPI Firewall
Access Control
Service Filtering
IP & MAC Binding
IPv6 FirewallOperation Modes 3G/4G Router
Wireless RouterCellular Mode 4G Preferred
4G Only
3G OnlyCellular APN Data Roaming
Network Search
Profile Create
APN Settings
ISP File Upgrade
PIN ManagementWAN Mode Dynamic IP
Static IP
PPPoE
PPTP
L2TPDHCP Server
DHCP Client List
Address ReservationNAT Forwarding ALG
Virtual Server
Port Triggering
UPnP
DMZПротоколи IPv4, IPv6Data Settings Data Statistics
Data LimitМрежа за гости 2.4 GHz Guest NetworkParental Controls Time Control
Website FilteringDDNS DynDNS
NO-IPVPN Sever OpenVPN
PPTP VPN
L2TP VPNSMS Inbox
New Message
Outbox
DraftsISP Feature TR-069System Time Settings
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot
Administration
System Log
CWMP SettingsLED Management LED Control
Night ModeDevice Management MERCUSYS APP
Web GUICloud Firmware Upgrade over the Cloud
Remote ManagementLanguage English
Spanish
Italian
Polish
RussianРазмери (ШxДxВ) 108 × 86.8 × 34 mm
(4.3 × 3.4 × 1.3 in)Antenna 2 External Non-detachable 4G LTE Antennas
2 Internal Wi-Fi AntennasИнтерфейси 1× 100 Mbps LAN/WAN Port
1× 100 Mbps LAN Port
1× Nano SIM Card SlotБутона 1×WPS/Wi-Fi Button
1×Reset ButtonPower Consumption USB-C: 5V/1.5ARetail Package Weight 0.35 kgInstallation DesktopLED 1× Power
1× Internet
1× LAN
3× SignalRetail Package Dimension 192 × 148 × 58Units per Carton 32Carton Dimension 480 × 400 × 320
