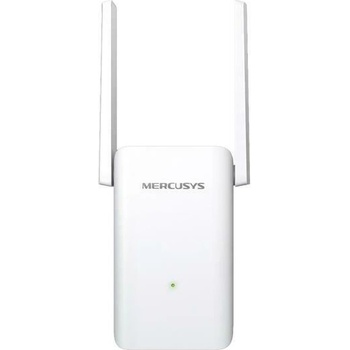

Mercusys ME70X AX1800

Mercusys ME70X

• Dual Band Speeds up to 1800 Mbps – 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. †
• Armed with WiFi 6 – Improves virtually every aspect of your network: speed, efficiency, and capacity.
• Gigabit Wired Connection – Provides speedy wired connections for PCS, IPTVS. and game consoles.
• Works with Any Routers – To Extend WiFi to Where You Need It Most. ‡
• Easy One-Touch Setup – Press the WPS button to expand your Wi-Fi coverage in seconds.
• Built-In Access Point Mode – Works as RE mode and AP mode.
• Manage Your Network with App - Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.

Expand coverage of your Existing Router. The two adjustable high-gain antennas extends WiFi signals to where your router WiFi cannot reach. This AX1800 Range Extender is backward compatible with previous WiFi generations (11b/g/n/a/ac) and will work with all your existing internet-connected devices.

ME70X is more than just a WiFi range extender. Connect your wired internet connection to the ME70X via Ethernet cable to turn it into a dual band WiFi access point.

Wireles s

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz

Frequency

2.4GHz and 5GHz

WiFi Speeds

574 Mbps at 2.4GHz, 1201 Mbps at 5GHz

Reception Sensitivity

5GHz:
11ax HE80 MCS0:-88 dBm ;
11ax HE80 MCS11:-58 dBm
11a 6Mbps:-94 dBm;
11a 54Mbps:-76 dBm
11ac VHT80 MCS0:-91dBm;
11ac VHT80 MCS9:-63dBm;

2.4GHz:
11ax HE40 MCS0:-93 dBm ;
11ax HE40 MCS11:-63 dBm
11g 6Mbps:-95 dBm;
11g 54Mbps:-77 dBm
11n HT40 MCS9:-72dBm;

Wireless Security

WEP, WPA, WPA2, WPA3-PSK

Hardware

Dimensions

138.6 × 100.3 × 68.4 mm

Interfaces

1 Gigabit Ethernet Port

Button

WPS / Reset Button

Antenna Type

2× External Antennas

Power Consumption

13W

Others

Certification s

RoHS

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
