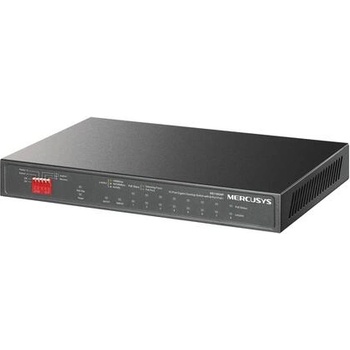

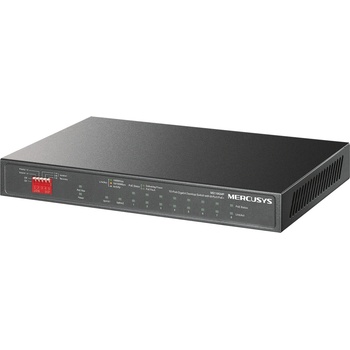

Mercusys MS110GMP

MS110GMP

10-Po rt Gigabit Desktop Switch with 8-Port PoE+

• 8× Gigabit PoE+ ports, and 2× Gigabit Uplink Ports
• 8× PoE+ ports transfer data and power via a single cable with a total power budget of 111 W *
• Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
• Up to 250 m data and power transmission range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
• Plug and play with no configuration required
• Fanless design reduces power consumption and works silently in its location



As a 10-port gigabit desktop switch with 8 PoE+ ports, MS110GMP is ideal for a wide range of applications, such as surveillance for offices, dormitories, and small businesses.



Category SpecificationHa rdware  Dimensions 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)PoE Ports Standard: 802.3 af/at compliant PoE Ports: Ports 1–8Power Supply: 111 WInterfaces 8× 10/100/1000 Mbps PoE+ Ports 2× 1000 Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIXNetwork Media 10BASE-T: UTP Cat 3, 4, 5 (100m max), EIA/TIA-568 100 STP (100m max)100BASE-TX: UTP Cat 5, 5e (100m max), EIA/TIA-568 100 STP (100m max)1000BASE-T: UTP Cat 5, 5e, 6 or above (100m max), EIA/TIA-568 100 STP (100m max)External Power Supply External Power Adapter (Output: 54VDC / 2.22A)Fan Quantity FanlessPhysical Security Lock YesJumbo Frame 16 KBSwitching Capacity 20 GbpsMAC Address Table 4KMax Power Consumption 7.37 W (220V / 50Hz, no PD connected)129.4 W (220V / 50Hz, with 111 W PD connected)Max Heat Dissipation 25.13 BTU/h (220V / 50Hz, no PD connected)441.25 BTU/h (220V / 50Hz, with 111 W PD connected)Software  Transfer Method Store-and-ForwardAdvanced Features Compatible with IEEE 802.3af/at Compliant PDsExtend Mode Button (Ports 1–4, up to 250 m PoE + data)Priority Mode Button (Ports 1–2)Isolation Mode Button (Ports 1–4 / 5–8)PoE Auto Recovery (Ports 1–8)MAC Address Auto-Learning & Auto-AgingIEEE802.3x Flow Control (Full-Duplex) & Backpressure (Half-Duplex)Performance  Packet Forwarding Rate 14.88 MppsOthers  Certifications FCC, CE, RoHSPackage Contents MS110GMPPower AdapterInstallation GuideEnvironment Operating Temp: -10℃ to 40℃ (14℉–104℉)Storage Temp: -40℃ to 70℃ (-40℉–158℉)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
