Препоръчани оферти (3)
MSI B760M GAMING PLUS WIFI
Дънна платка msi b760m gaming plus wifi (911-7d99-017)
B760M GAMING PLUS WIFI LGA 1700 4xDDR5 mATX 2xHDMI 2xDP USB MB (B760M_GAMING_PLUS_WIFI)
B760M GAMING PLUS WIFI LGA 1700 4xDDR5 mATX 2xHDMI 2xDP USB MB (B760M_GAMING_PLUS_WIFI)
Дънна платка msi - b760m gaming plus wifi, lga 1700 (b760m_gaming_plus_wifi)
Дънна платка msi - b760m gaming plus wifi, lga 1700 (b760m_gaming_plus_wifi)
Най-евтини оферти (27)
MSI B760M GAMING PLUS WIFI
B760M Gaming Plus WiFi, 911-7D99-017 (911-7D99-017)
Дънна платка MSI B760M Gaming Plus WIFI (7D99-017R) (7D99-017R)
Дънна платка MSI B760M Gaming Plus WIFI (7D99-017R) (7D99-017R)
Main Board Desktop B760M GAMING PLUS WIFI, LGA 1700, 4xDDR5, mATX, Dual Channel DDR5 6800(OC)MHz, 2x PCIe x16 slots, 2x M. 2 slots, 2x HDMI, 2 (B760M_GAMING_PLUS_WIFI)
Main Board Desktop B760M GAMING PLUS WIFI, LGA 1700, 4xDDR5, mATX, Dual Channel DDR5 6800(OC)MHz, 2x PCIe x16 slots, 2x M. 2 slots, 2x HDMI, 2 (B760M_GAMING_PLUS_WIFI)
b760m gaming plus wifi (911-7d99-060)
b760m gaming plus wifi (911-7d99-060)
b760m gaming plus wifi (911-7d99-017)
Main Board Desktop B760M GAMING PLUS WIFI (B760M_GAMING_PLUS_WIFI)
Main Board Desktop B760M GAMING PLUS WIFI (B760M_GAMING_PLUS_WIFI)
b760m gaming plus wifi (911-7d99-060)
Дънна платка, MSI B760M GAMING PLUS WiFi, LGA1700, 4xDDR5, 4xSATA3 RAID, 2xHDMI, 2xDP, 2xM2, GLAN, 2xPCIEx16, 1xPCIEx1 (MSI B760M GAMING PLUS WIFI)
Дънна платка, MSI B760M GAMING PLUS WiFi, LGA1700, 4xDDR5, 4xSATA3 RAID, 2xHDMI, 2xDP, 2xM2, GLAN, 2xPCIEx16, 1xPCIEx1 (MSI B760M GAMING PLUS WIFI)
Дънна платка msi b760m gaming plus wifi (911-7d99-017)
Подобни продукти
Описание на продукта
MSI B760M GAMING PLUS WIFI B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who...
Параметри на продукта
Параметри на продукта
Описание на продукта

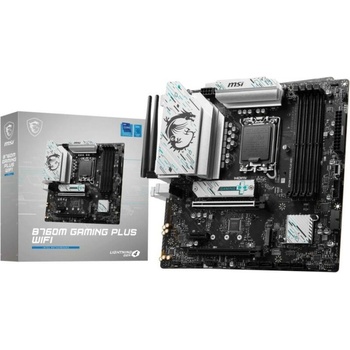

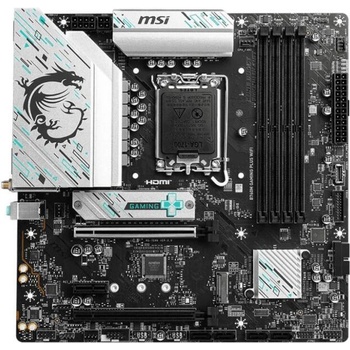

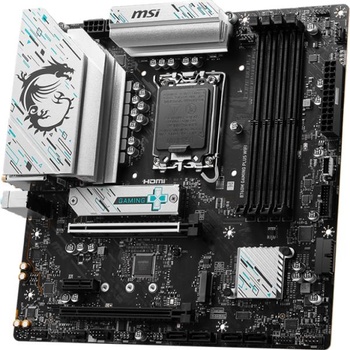

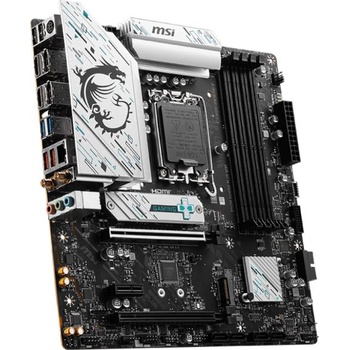

MSI B760M GAMING PLUS WIFI
B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
Tech specs:
ChipsetINTEL B760CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium Gold and Celeron Processors
LGA 1700
Memory 4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 2x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage 2x M. 2
M. 2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M. 2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M. 2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
LAN Realtek RTL8125BG 2.5G LAN
WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6E
The Wireless module is pre-installed in the M. 2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
- Keyboard / Mouse
- DisplayPort
- USB 3.2 Gen 1 5Gbps (Type-A)
- 2.5G LAN
- Wi-Fi / Bluetooth
- USB 2.0
- HDMI
- USB 3.2 Gen 2 10Gbps (Type-A)
- Audio Connectors
PCB Info mATX
243.84mmx243.84mm
Вижте от къде можете да закупите продукта:
Дънна платка msi b760m gaming plus wifi (911-7d99-017)
B760M GAMING PLUS WIFI LGA 1700 4xDDR5 mATX 2xHDMI 2xDP USB MB (B760M_GAMING_PLUS_WIFI)
B760M GAMING PLUS WIFI LGA 1700 4xDDR5 mATX 2xHDMI 2xDP USB MB (B760M_GAMING_PLUS_WIFI)
Дънна платка msi - b760m gaming plus wifi, lga 1700 (b760m_gaming_plus_wifi)
Дънна платка msi - b760m gaming plus wifi, lga 1700 (b760m_gaming_plus_wifi)
Липсва или е неправилен важен параметър? Предоставената информация е само за ориентиране, затова ви съветваме да проверите дали предлаганият продукт има ключовите параметри от които се нуждаете, преди да купите от магазина по ваш избор. Въпреки че се стремим към максимална точност на информацията, за съжаление не можем винаги да гарантираме 100% съответствие. Цените на продуктите са с включен ДДС.
Продуктът все още няма отзиви.
