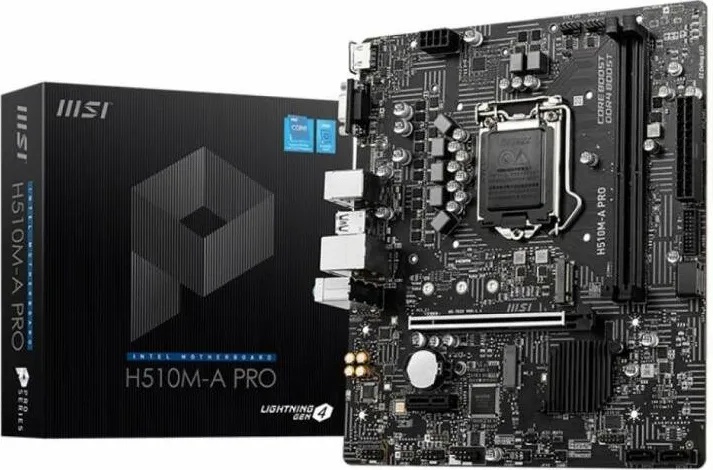

MSI H510M-A Pro

H510M-A PRO

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.



USER FRIENDLY DESIGN

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

EZ DEBUG LED

Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

11 TH GEN CORE PROCESSORS SUPPORT

EXTREME STABILITY & COMPATIBILITY TESTING FOR MEMORY

WINDOWS 10 CERTIFIED

CONNECTIVITY

The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN,   faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.



LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.



• Supports 10 th Gen Intel ®  Core, 11 th Gen Intel ®  Core, Pentium ®  Gold and Celeron ®  processors for LGA 1200 socket


• Supports DDR4 Memory, up to 3200(Max) MHz


• Core Boost: With premium layout and digital power design to support more cores and provide better performance.


• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.


• Lightning Fast Experience: PCIe 4.0


• Turbo M. 2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs


• Audio Boost: Reward your ears with studio grade sound quality


• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.





• Socket - 1200


• Chipset - Intel® H510 Chipset


• DDR4 Memory - 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz


• Memory Channel - Dual


• DIMM Slots - 2


• Max Memory (GB) - 64


• PCI-E x16 - 1


• PCI-E Gen - Gen4


• PCI-E x1 - 1


• SATAIII - 4


• M. 2 Slot - 2


• TPM (header) - 1


• LAN - 1x Intel® I219V Gigabit LAN controller


• USB 3.2 ports (Front) - 2(Gen 1, Type A)


• USB 3.2 ports (Rear) - 2(Gen 1, Type A)


• USB 2.0 ports (Front) - 2


• USB 2.0 ports (Rear) - 4


• Serial ports(Front) - 1


• Audio ports (Rear) - Realtek® ALC897 Codec


• VGA - 1


• HDMI - 1


• DirectX - 12


• Form Factor - MATX


• Operating System - Support for Windows® 10 64-bit
