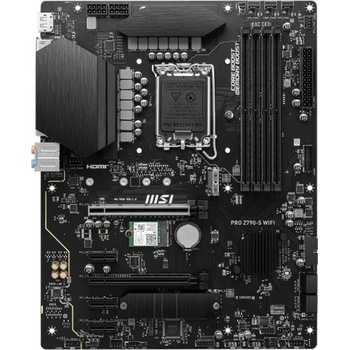

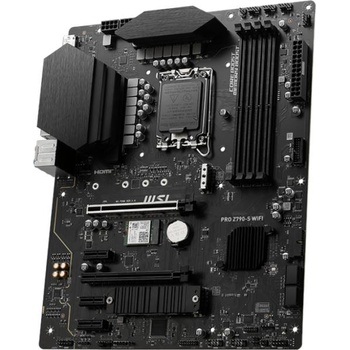

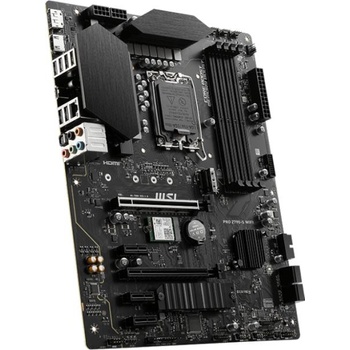

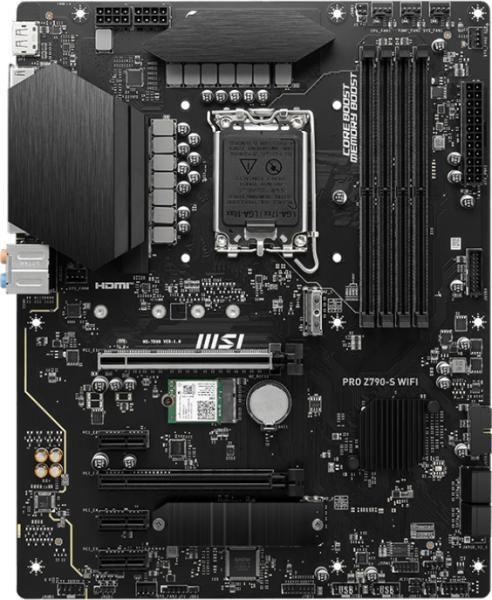

MSI PRO Z790-S WIFI

DescriptionPRO Z790-S Wi-Fi

• Supports 14th, 13th and 12th generation Intel Core processors, Intel Pentium Gold processor, Celeron processor and Intel 300(T) processor for LGA 1700 socket
• Supports DDR5 memory, dual-channel DDR5 6600+MHz (OC)
• Improved Power Design: Duet Rail 12+1+1 Power System with P-PAK, Dual 8-Pin CPU Power Connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended heatsink, 7W/mK MOSFET thermal pads, additional thermal pads with chokes, and M. 2 Shield Frozr connector ensure high system performance and an uninterrupted gaming experience
• High-quality PCB: 6-layer PCB made of 2-ounce copper and server-grade material
• Lightning-fast gaming experience: PCIe 5.0 slot, Lightning Gen 4 x4 M. 2, USB 3.2 Gen 2x2
• Intel Turbo USB 3.2 Gen 2: Powered by the Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with greater stability and the fastest USB speeds
• 2.5G LAN solution with Wi-Fi 6E: Enhanced networking solution for professional and multimedia applications. Provides a safe, stable and fast network connection
• AUDIO ENHANCEMENT: Reward your ears with studio-quality audio for the most immersive gaming experience

Model:PRO Z790-S WIFICPU socket:LGA1700Processor family:Intel Celeron
Intel Pentium Gold
Intel CoreIntegrated CPU:NoChipset manufacturer:IntelChipset type: INTEL Z790Memory type:DDR5Number of DDR5 slots:4Memory bus frequency:5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
5200 MHz
4800 MHz
5000 MHz
6400 MHz
6600 MHzMax memory size:192 GBExpansion slots:2 x PCIe x 16
2 x M. 2
3 x PCIe x 1Max. number of SATA devices:4Max. number of ATA devices:0RAID:NoDetailed data on disk/drive interfaces:

• 2x PCI-E x16 slot
• 3x PCI-E x1 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
• 2x M. 2
• M. 2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
• M. 2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Graphics:

• 1x HDMI
• HDMI 1.4 support with HDR, maximum resolution 4K 30 Hz*
• 1x DisplayPort
• DP 1.4 support, maximum resolution 4K 60 Hz*
• *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.

Sound card:

• Realtek ALC897 codec
• 7.1-channel high-resolution audio
• Supports S/PDIF output

Network interface:1 x 10/100/1000/2500 Mbit/s
Wi-Fi 802.11a/b/g/n/ac/ax
BluetoothNetwork interface:

• Realtek RTL8125BG 2.5Gbps LAN
• WIRELESS LAN AND BLUETOOTH Intel Wi-Fi 6E
• The wireless module is pre-installed in the M. 2_WIFI1 (Key-E) slot.
• Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz* (160 MHz) up to 2.4 Gbps
• Supports 802.11 a/b/g/n/ac/ax
• Supports Bluetooth 5.3, FIPS, FISMA

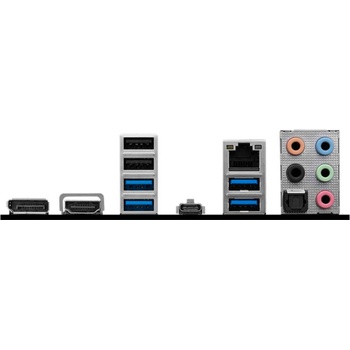

USB ports at back panel:7USB ports on motherboard:8Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports:8Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports:1FireWire (IEEE 1394):NoCOM connector / port:NoLPT connector / port:NoExternal connectors:1 x MIC
2 x USB 2.0
1 x Rear Speaker
1 x HDMI
1 x Central Speaker / Subwoofer
1 x Line In
1 x Line Out
1 x S/PDIF
1 x RJ-45
1 x DisplayPort
4 x USB 3.0
1 x USB 3.1 Type-COnboard connectors:1 x Front panel audio header
1 x TPM header
2 x System panel header
1 x 4pin CPU fan
1 x 4pin CPU/Water Pump Fan Connector
4 x 4pin Chassis fan
4 x USB 2.0/1.1
4 x USB 3.0
1 x Power led header
1 x Chassis intrusion headerForm factor:ATXDimensions:24.384 x 30.48 cmSupported operating systems:Windows 11
Windows 10
