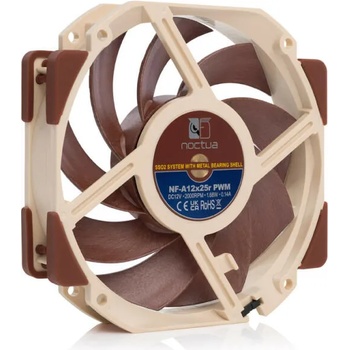

Noctua NF-A12X25R

Noctua NF-A12x25R-PWM

FAN Specification
Size: 120x120x25 mm
Mounting hole spacing: 93x83 mm
Connector & pin-configuration: 4-pin PWM
Cable length: 20cm + 30cm NA-EC1 extension cable
Bearing: SSO2
Blade geometry: A-Series with Flow Acceleration Channels
Frame technology: AAO (Advanced Acoustic Optimisation)
Material Sterrox®: LCP
Rotational speed (+/- 10%): 2000 RPM
Rotational speed with L. N. A. (+/- 10%): 1700 RPM
Min. rotational speed @ 20% PWM (+/-20%): 450 RPM
Airflow : 102,1 m³/h
Airflow with L. N. A. : 84,5 m³/h
Acoustical noise: 22,6 dB(A)
Acoustical noise with L. N. A. : 18,8 dB(A)
Static pressure: 2,34 mm H₂O
Static pressure with L. N. A. 1,65 mm H₂O
Max. input power: 1,68 W
Max. input current: 0,14 A
Operating voltage: 12 V
Voltage PWM signal: 5 V
MTTF >: 150.000 h

Scope of delivery
NA-RC14 Low-Noise Adaptor (L. N. A)
NA-YC1 4-pin PWM y-cable
NA-EC1 30cm extension cable
4x NA-AV2 anti-vibration mounts
Fan screws
