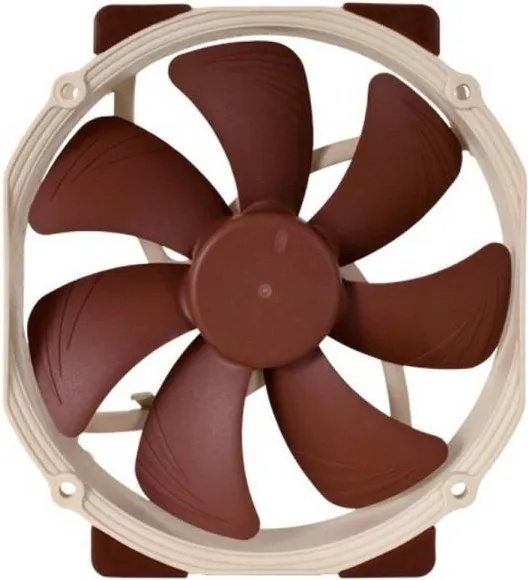

Noctua NF-A15 PWM

The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard. The NF-A15’s frame features 120mm mounting holes (105mm spacing) and has been enlarged to 150mm width in order to provide superior performance on today’s high-end CPU coolers. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14. Noctua’s custom designed PWM IC for fully automatic speed control and reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and 6 years manufacturer’s warranty, the NF-A15 is a premium choice for the highest demands.

Size: 140x150x25 mm

Connector: 4-pin PWM

Bearing: SSO2

Blade Geometry: A-Series with Flow Acceleration Channels

Frame Technology: AAO (Advanced Acoustic Optimisation)

Rotational Speed (+/- 10%): 1200 RPM

Rotational Speed with L. N. A. (+/- 10%): 900 RPM

Min. Rotational Speed (PWM): 300 RPM

Airflow : 115,5 m³/h

Airflow with L. N. A. : 88,7 m³/h

Acoustical Noise: 19,2 dB(A)

Acoustical Noise with L. N. A. : 13,8 dB(A)

Static Pressure: 1,51 mm H2O

Static Pressure with L. N. A. : 0,89 mm H2O

Max. Input Power: 0,96 W

Max. Input Current: 0,08 A

Voltage: 12 V

MTBF: > 150.000 h

Scope of Delivery

Low-Noise Adaptor (L. N. A. )
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
