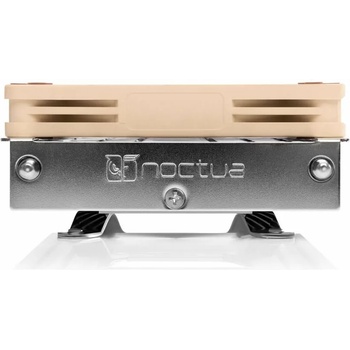

Noctua NH-L9A-AM5

The NH-L9a-AM5 is the latest, AM5-specific revision of Noctua’s award-winning NH-L9a low-profile CPU cooler for AMD Ryzen based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9a is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2 mounting system for the AM5 socket makes installation a breeze and, thanks to the highly optimised NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9a-AM5 runs remarkably quietly. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9a-AM5 combines everything users have come to expect from Noctua’s larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with AMD AM5 processors.

Product Details
Notes and warnings
The NH-L9a-AM5 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9a-AM5 is recommended for your CPU.
Cooler Specification
Socket compatibility
AMD AM5
Height (without fan)
23 mm
Width (without fan)
114 mm
Depth (without fan)
92 mm
Weight (without fan)
390 g
Height (with fan)
37 mm
Width (with fan)
114 mm
Depth (with fan)
92 mm
Weight (with fan)
465 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR
61
Max. TDP
see NSPR
Fan compatibility
92x92x14mm, 92x92x25mm
Scope of delivery

NF-A9x14 PWM premium fan
NA-RC7 Low-Noise Adaptor (L. N. A)
NT-H1 high-grade thermal compound
SecuFirm2 AM5 mounting kit
Screws for 92x92x25mm fans
Noctua Metal Case-Badge

FAN Specification
Model
Noctua NF-A9x14 HS-PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
2500 RPM
Max. rotational speed with L. N. A. (+/- 10%)
1800 RPM
Min. rotational speed @ 20% PWM (+/-20%)
600 RPM
Max. airflow
57,5 m³/h
Max. airflow with L. N. A.
40,8 m³/h
Max. acoustical noise
23,6 dB(A)
Max. acoustical noise with L. N. A.
14,8 dB(A)
Input power (max. )
2,52 W
Voltage range
12 V
MTTF
> 150.000 h
