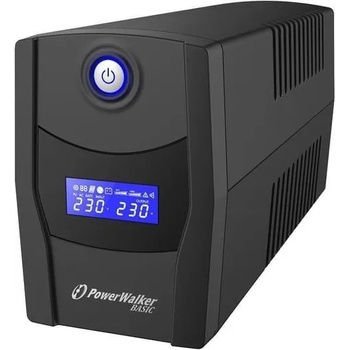

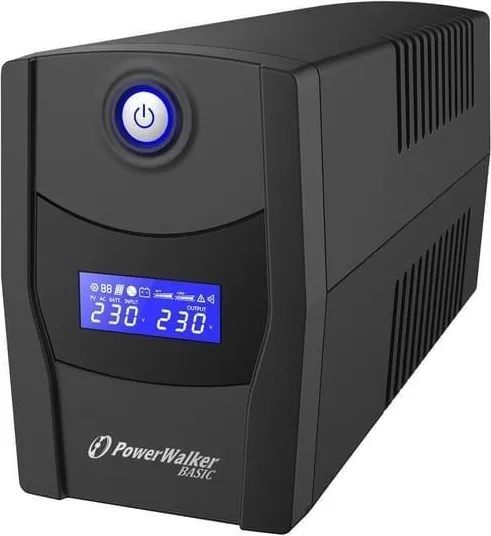

PowerWalker VI 1000 STL

• Human Interface Device (HID) compatible USB connection (no additional drivers needed)


• Multi-purpose button (single-click, double-click or hold to control different functions)


• Equipped with Boost and Buck AVR to stabilize output voltage


• Cold (DC) Start Function


• Auto dimming screen (UPS is woken up with single button click)



The PowerWalker Basic VI 600/800/1000/1200/1500/2200 STL series is designed to answer the essential market needs. This line interactive UPS will protect your load from power failures and voltage disturbances, while remaining affordable and compact. It is equipped with a USB port with HID support allowing easy and immediate communication with any O/S.

Additionally this series offers an advanced auto-dimming LCD panel with a smart multi-functional button (a single click will illuminate the LCD panel, a double click will mute the alarm and a long-press will control the output).





General features

Type
Line-Interactive

Power capacity
1000VA / 600W

Output Power Factor
0.60

Input

Input Voltage Range
162-290 VAC

Frequency (Synchronized Range)
50Hz or 60Hz

Output

Nominal Output Voltage
230 VAC

Frequency (Battery Mode)
±1%

Technical details

Transfer Time [AC to Battery]
4ms

Charger
0.7A

Efficiency

LINE mode full Load
96.0%

Batteries and autonomy time

Batteries
1x 12V/9Ah

DC Voltage
1 x 12V

Recharge Time
8h to 90%

Half Load Backup Time
5.5min

Connections and communication

CEE 7/3 (Type F) Outlet
2

Input
CEE 7/7

Software
PowerMaster

USB port
Yes

HID Support
Yes

RJ-45/RJ-11 protection
Yes

Environment

Noise Level
No Fan

Temperature
0°C – 40°C

Humidity
0% - 90% RH (non-condensing)

Logistics

Package Content
UPS, Manual

Manual Languages
EN/FR/PL/PT/BG/RO/RU

EAN
4260074980691

Width
96 mm

Height
138 mm

Depth
286 mm

Weight
4.9 kg

Giftbox - Width
146 mm

Giftbox - Height
202 mm

Giftbox - Depth
323 mm

Giftbox - Weight
7 kg

Carton - Width
603 mm

Carton - Height
227 mm

Carton - Depth
339 mm

Carton - Weight
22.7 kg

Pcs. per box
4

Pcs. per pal
192
