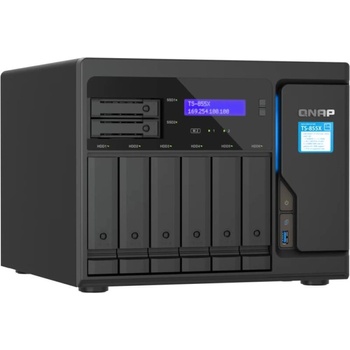

QNAP TS-855X-8G

Qnap TS-855X-8G

The high-capacity TS-855X has six 3.5-inch SATA drive bays (for HDDs), two 2.5-inch SATA drive bays (for SSDs) and an 8-core processor supporting Intel® QuickAssist Technology (QAT), greatly assisting businesses in deploying a data storage and virtualization environment. The built-in 10GbE/2.5GbE high-speed connectivity helps realize fast data access, backup/restoration, file server, and virtualization applications. Running the QTS operating system as standard, the TS-855X can be switched to use the ZFS-based QuTS hero operating system based on your requirements. The TS-855X will be available and supported by QNAP for an extended period (up to 2030), ideal for businesses requiring matching NAS models deployed in long-term projects.



 CPU Intel ® Atom® C5125 8-core processor, 2.8GHzCPU Architecture 64-bit x86Floating Point Unit YesEncryption Engine (AES-NI)System Memory 8 GB non-ECC UDIMM DDR4Maximum Memory 128 GB (4 x 32 GB)Memory Slot 4 x U-DIMM DDR4
Support ECC memoryFlash Memory 5GB (Dual boot OS protection)Drive Bay 6 x 3.5-inch + 2 x 2.5-inch SATA 6Gb/s, 3Gb/sDrive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

2.5-inch bays:
2.5-inch SATA solid state drivesHot-swappable The following are not hot-swappable: M. 2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. M. 2 Slot

2 x M. 2 2280 PCIe Gen 3 x4 slots

The M. 2 SSD is not included as standard.

SSD Cache Acceleration Support YesSR-IOV Yes2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)10 Gigabit Ethernet Port 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)25 Gigabit Ethernet Port Optional via PCIe expansion cardWake on LAN (WOL) Only the 2.5GbE portJumbo Frame YesPCIe Slot

2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4

Card dimensions for PCIe slot 1：260 x 111.15 x 18.76 mm / 10.25 x 4.38 x 0.74 inches
Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches.

USB 2.0 port 1USB 3.2 Gen 1 port 3Form Factor TowerLED Indicators Power/Status, LAN, USB, HDD1-6, SSD 1-2, M. 2 SSD 1-2Buttons Power, Reset, USB Auto CopyDimensions (HxWxD)

225 × 292.9 × 319.8 mm

Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)

Weight (Net) 10.04 kgWeight (Gross) 10.04 kgOperating Temperature 0 - 40°C (32°F - 104°F)Storage Temperature -20 - 70°C (-4°F - 158°F)Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)Power Supply Unit 250W PSU, 100~240VPower Consumption: Operating Mode, Typical

86.96 W

Tested with drives fully populated.

Fan System fan: 2 x 80mm, 12VDC
CPU fan: 1 x 90mm, 12VDCOther Interfaces Kensington security slotSystem Warning Buzzer
