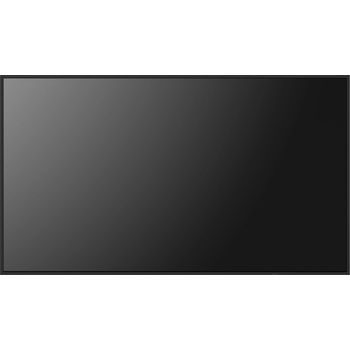

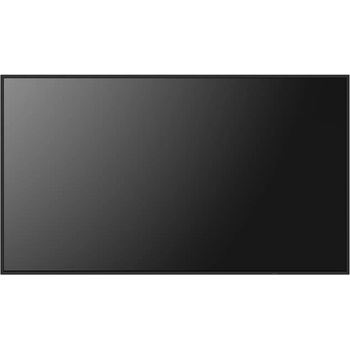

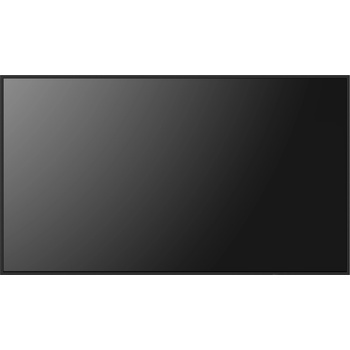

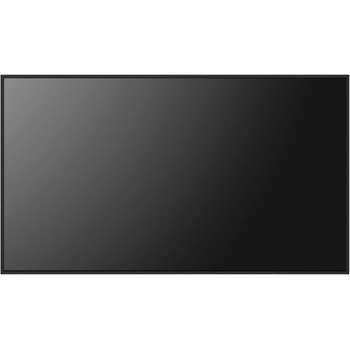

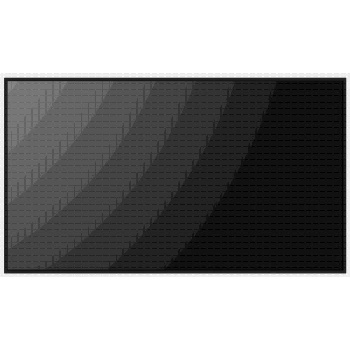

Sharp MultiSync E509 60006182

The entry point for professional display solutions, the Sharp MultiSync E9 Series is designed for modern business environments that need more than a consumer TV can offer. Combining essential features for meeting rooms and digital signage with commercial-grade reliability, the E9 Series delivers crisp UHD resolution, integrated media playback, and 16/7 operation at an accessible price point. A professional matte high-haze panel ensures superior visual performance in this product category, minimising reflections and glare common with glossy panels.

Designed for seamless integration across the wider Sharp display family, the E9 Series shares the same core identity, including the same remote control and device management for a consistent user experience. A robust metal back cover secures product longevity in commercial settings. Whether for presentations, retail signage, or corporate communication, the E9 Series gives you the professional edge without stretching your budget.



Specifications



Display

Screen Size (inch) 50Screen Size (cm) 127



Additional Features

Colour Versions Black Back Cabinet, Black Front BezelSafety and Ergonomics UKCA, UL/C-UL or CSA, FCC Class B, CE, EnergyStar 8.0, VCCI, RCM



Connectivity

Digital HDMI, USB Type COutput Control LAN 100Mbit



Resolution

Optimum Resolution 3840 x 2160 at 60 HzSupported Resolution 1920 x 1200, 1024 x 768 , 1280 x 1024, 1920 x 1080, 640 x 480, 1280 x 720, 1280 x 960, 1440 x 900, 1680 x 1050, 3840 x 2160, 1360 x 768, 720 x 576, 720 x 400, 720 x 480, 1400 x 1050, 4096 x 2160



Electrical

Power Consumption on Mode [W] 99 (shipping)Power Supply 100-240 V, Internal Power Supply



Environmental Conditions

Operating Humidity (min) [%] 20Operating Humidity (max) [%] 80



Mechanical

Bezel Width (Left/Right) [mm] 11Bezel Width (Upper) [mm] 11Bezel Width (Lower) [mm] 11



Green Features

Energy Efficiency LED backlight technology, Energy consumption: 90 kWh/1000 h, Energy efficiency class: GEcological Standards Energy Star 8.0



Synchronisation Rate

Horizontal Frequency [kHz] 31.5 - 135Vertical Frequency [Hz] 24 - 75



Ergonomics

Landscape Dimensions (Width) [mm] 1120Landscape Dimensions (Height) [mm] 641Landscape Dimensions (Depth) [mm] 60



Panel Data

Bezel Horizontal (mm) 11Bezel Vertical (mm) 11Panel Response Time (ms) 8



PC-Input Input Data 1 x USB 2.0 (MediaPlayer)



Connect ivity (Audio/Video) INPUT

Audio 3.5mm Jack 1



Video Terminals

Control Terminals RS232C, LAN



Audio Terminals

Speaker Output (W RMS) Internal 10W + 10W



Installation

Portrait Installation YesLandscape Installation YesLandscape YesPortrait YesMounting (VESA mm) 200 x 200 (FDMI)Mounting (Number of Points/Pitch) 4Mounting Screw Specification (Size/Max Length) M6



Display Module Data

Panel Technology VA with Direct LED backlightsAspect Ratio 16:9Brightness (cd/m2) 350Contrast Ratio 4000:1Pixel Pitch (mm) 0.285Viewing Angle (°) 178Colour Depth [bn] 1.07 (8bit + FRC)Active Screen Area (H/V) mm 1095 x 616Max. screen time up to 16 hours of use per dayResponse Time (typ. ) [ms] 8



Key Specifications

Special Characteristics USB Media Player, NaViSet Administrator 2, CEC Support, Powered USB-Port, HDMI ARC, SchedulerBuilt in Speakers (W) 10 + 10Remote Management YesOperating Time 16/7Supported Image Format Max. resolution 15360 x 8640, JPG (baseline, progressive, RGB, CMYK)



Touch Interface Specification

Haze Level [%] Pro 25



Power Supply and Operating Environment

Operating Voltage (ACV) 100-240Frequency (Hz) 50-60Via AC Adapter YesOperating Voltage (DCV) 100-240Operating Temperature (°C) 0 - 40Storage Temperature (°C) -20 - 60Storage Humidity Min [%] 10Storage Humidity Max [%] 80Power Saving Mode (W) < 2 (Networked Standby)Battery < 0.5 (ECO Standby)



Connectivity (Control/Serial) Data

RS232C IN 9600RS232C OUT 9600
