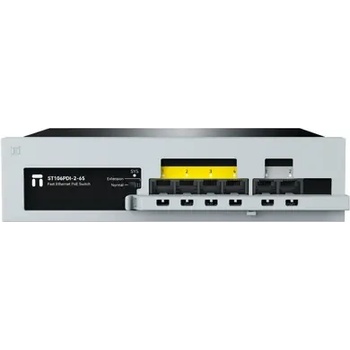

Stonet ST106PDI-2-65

Stonet ST106PDI-2-65

Fast Ethernet PoE Switch with Attached Safety Lock

• Attached safety lock, more stable.
• 6*10/100M ports: 4 PoE ports+2 uplink ports.
• Internal 65W power supply with up to 30W PoE output per port.
• Durable steel housing for better heat dissipation.
• Support IEEE 802.3af/at standards, compatible with powered devices (PD) that meet IEEE 802.3af/at.
• All ports support auto MDI/MDI-X function.
• Equipped with a convenient DIP switch that can be easily switched between normal mode and extension mode.



More Durable!

Attached safety lock design, no need to install, it will keep your network cable fixed stable with the switch.

*Attached safety lock with exclusive patent certification, 100% quality assured.



Standard PoE Power Supply

Up To 30W PoE Output Per Port

ST106PDI-2-65 has a total power of 65W with 4*100M PoE ports and 2*100M uplink ports.
ST110PDI-2-130 has a total power of 130W with 8*100M PoE ports and 2*100M uplink ports.

It can support multiple IP cameras and other high-power devices running simultaneously, ensuring a stable and sufficient power supply.



SpecificationDetailsPower Indicator Lights up when the device is powered onFunction Indicator Lights up when the extended transmission function is enabledSwitch Ports Normal mode / Cable Extension modePorts 4 × 100Mbps PoE ports + 2 × 100Mbps uplink portsBackplane Bandwidth 1.2 GbpsMAC Address Table 2KInput Power 100–240V ~ 50/60HzPower Supply 65W (54V / 1.2A)Maximum PoE Output Power 55WNetwork Media & Transmission Distance 100Base-TX: Cat5 or higher UTP/STP (≤100m)10Base-TX: Cat6 or higher UTP/STP (≤250m)Basic Functions Complies with IEEE 802.3 / 802.3u standardsCompatible with IEEE 802.3af/at PD devicesSupports non-standard PD devicesStore-and-forward switchingAutomatic MAC learning & agingExtended transmission for long-distance monitoringIEEE 802.3X full-duplex flow controlBackpressure half-duplex flow controlEthernet Protocols & Standards IEEE 802.3 MACIEEE 802.3i (10BASE-T)IEEE 802.3u (100BASE-TX)IEEE 802.3af (PoE)IEEE 802.3at (PoE+)IEEE 802.3x Flow ControlData Transfer Rates 10/100 Mbps (full-duplex and half-duplex)Temperature Operating: 0°C ~ 40°CStorage: -40°C ~ 70°CHumidity Operating: 10% ~ 90% RH (non-condensing)Storage: 5% ~ 90% RH (non-condensing)Altitude Operating: ≤2000 m (6500 ft)Storage: ≤2000 m (6500 ft)Differential Mode 4KVCommon Mode 4KVDimensions (W × D × H) 190 × 140 × 43 mmProtective Packing EPE protectionStacking Limit Maximum 4 layers (fully packaged)Humidity 5% ~ 90% RH (non-condensing)Storage Temperature -40°C ~ 70°C (room temperature recommended considering humidity)Storage Precautions Store in clean, ventilated environmentAvoid corrosive gases, flammable/explosive materialsKeep away from heat and vibrationStorage Period Up to 1 year under proper conditionsRe-test recommended after 2 years
