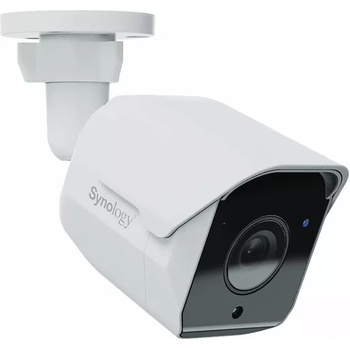

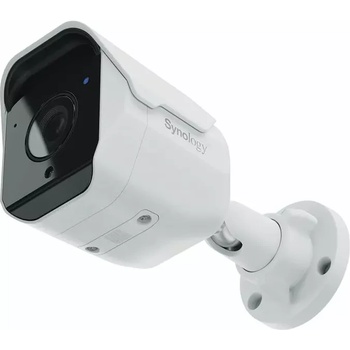

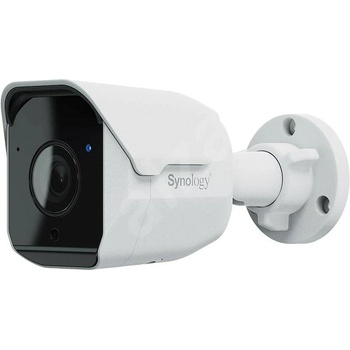

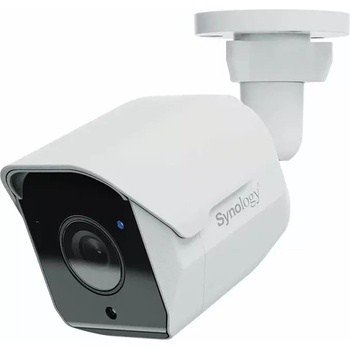

Synology BC500

Hardware Specifications

OpticalImage Sensor1/2.7"IR LED wavelength850 nmMax. IR distance30m (98.4ft) (0.001lux)Shutter Speed1/16000 s to 1/30 sDay & NightAutomatically removable infrared-cut filterLensLens typeFixed FocalFocal Length2.8 mmField of View110° H, 56° V, 132° D
(LDC ON)ApertureF1.8VideoMax. video resolution2880x1620 @ 30 FPSMulti-exposure HDRDNR

• 3DNR
• 2DNR

AudioMicrophoneVI/OEthernetRJ45 10M/100M Ethernet port X 1ResetVOn-Board StorageMicro SD card slot X 1
Support Micro SDHC/SDXC card up to 128GB
Supported file format: exFAT
Note: SD card is not includedPower SupplyIEEE 802.3af Type 1 Class 3 or 12V DCNote

• Compatible DC power adapter: 12V/1A (Ø2.1mm)
• PoE switch or 12V DC power adapter is not included.

GeneralForm FactorBulletDimensionØ110 × 161 mm (Ø4.33 × 6.34")Weight353 g (0.78 lbs)TemperatureOperating ConditionStarting temperature:-30°C to 50°C (-22°F to 122°F)
Operating temperature:-30°C to 50°C (-22°F to 122°F) (IR off)
Operating temperature:-30°C to 40 °C (-22°F to 104°F) (IR on)
Operating humidity:5%~95% (non-condensing)Storage ConditionStorage temperature:-40°C to 60°C (-40°F to 140°F)
Storage humidity:5%~95% (non-condensing)Certification

• FCC
• CB
• IC
• CE
UKCA
• BSMI
• VCCI
• R CM
• KC
• JATE

En vironment

• REACH Compliant
• WEEE Compliant
• ROHS Compliant

WaterproofIP67Vandal- NDAA CompliantVTAA CompliantVWarranty3-yearPackaging Content

• Main Unit X 1
• Installation guide X 1
• Screw pack X 1
• RJ45 cap cover X 1

Software Specifications

Video & AudioMain Stream2880x1620 @ 30 FPS
2560x1440 @ 30 FPS
2304x1296 @ 30 FPS
1920x1080 @ 30 FPS
1280x720 @ 30 FPSSub Stream1920×1080 @ 15 FPS
1280x720 @ 30 FPSVideo Format

• H. 264
• H. 265

Bitrate Control

• VBR
• MBR

Audio CompressionG. 711Audio DenoiseVImage Adjustment

• Brightness
• Con trast
• Sharpness
• Saturati on
• White Balance
• Exposure Control
• High Dynamic Range (HDR)
• 3D/2D Noise Reduction
• 50/60 Hz Flicker Reduction
• Day/Night mode
• Overlay

Day/Night Mode

• Auto
• Day
• Nig ht
• Schedule

Video Orientation

• Mirror
• Flip
• Rotation (0°, 90°, 180°, 270°)

Privacy Mask

• Removeable/Unremovable mode
• Up to 5 zones

Max RTSP Connections4AnalyticsEvent Analytics

• Audio Detection
• Tampering Detection
• Motion Detection

People & Vehicle

• People Detection
• Vehicle Detection
• Crowd Detection
• Loitering Detection

IntrusionOne way or Two wayInstant Search

• Motion
• Vehicle
• People

SecurityIP Filter

• Auto Block
• Allow/Block list

Connection ManagementVFirmware Update

• Automatically update to the important version
• Automatically update to the latest version
• Manual upload

Signed FirmwareVHTTPSVSRTPVStorage ManagementStorageSD Card & Synology NASSD Card Recording Mode

• Event Analytics
• Disconnected with NAS

NoteSD Card capacity under 128GB is tested by SynologyCamera Web InterfaceLiveviewVNetwork

• Auto Block
• Allow/Block list
• Connection Management
• Fixed IP/DHCP

System

• Reset
• Restart
• Manual Firmware Upgrade
• DST
• Time Zone
• NTP Server

Camera Log ExportVSupported BrowsersGoogle ChromeSupported LanguageEnglish, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文Software RequirementSurveillance StationSuveillance Station 9.1 or higherSurveillance Station ClientSurveillance Station Client version 2.1. 0 or higherDS Cam

• Android DS cam 3.7. 0 or higher
• iOS DS cam 5.6. 0 or higher

Camera Tool1.0. 0NoteBuilt-in Surveillance Device License
