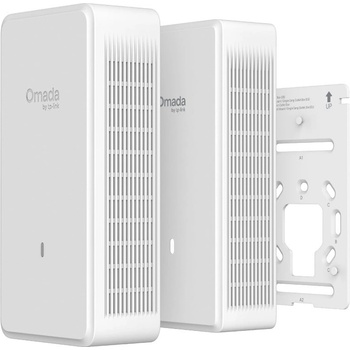

TP-Link Omada EAP775-Wall

EAP775-Wall

BE9300 Wall Plate Wi-Fi 7 Access Point

• 6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.
• Versatile & Aesthetic Wall-Mounted Design: Slim, versatile wall-mounted design sits flush against the wall for a seamless look and reliable Wi-Fi 7 performance.
• Made to Be Discreet with Additional Paintable Cover:  Includes an additional paintable cover that blends seamlessly into any wall or interior style.
• Anti-Theft Design for Robust Physical Security: Features a concealed anti-theft lock that secures the device flush against the wall, safeguarding your investment.
• Multiple Ports with PoE Flexibility: 2× 2.5G Ports (1× PoE+/PoE++ In) + 3× Gigabit Ports (2× PoE Out or 1× PoE+ Out). The PoE out feature requires 802.3bt input.
• Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.
• Easy Setup, Easy to Use: Works with Omada SDN for one-click setup.
• Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.
• Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections** and covers up to 1050 ft2 (100 m2) * for reliable and extensive wireless connectivity.



Optimized Wired Performance
with 2.5G PoE Ports



Параметър СпецификацияИнтерфей сUplink: 1× 2.5G Ethernet Port Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. The PoE Out feature requires 802.3bt input. )Защита с физическо заключване YesБутон ResetЗахранване 802.3at/bt PoEPoE Out Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. The PoE Out feature requires 802.3bt input. Консумирана енергия 43.35W (with 25W PoE Out)Размери (Ш x Д x В) 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm)Антена 6× Internal Antennas 2.4 GHz: 2× 5 dBi 5 GHz: 2× 5.5 dBi 6 GHz: 2× 5.5 dBiBluetooth V5.2Монтаж Wall Mounting (Kits included)Coverage 1050 ft2 (100 m2)*Concurrent Clients 380+**Безжични стандарти IEEE 802.11 a/b/g/n/ac/ax/beЧестота 2.4 GHz, 5 GHz, and 6 GHzСкорост на сигнала6 GHz: Up to 5765 Mbps 5 GHz: Up to 2882 Mbps 2.4 GHz: Up to 688 MbpsБезжични функцииMLO‡ 4K-QAM‡ Multi-RUs‡ 320 MHz Bandwidth‡ 24 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) Seamless Roaming△ Beamforming Rate Limit (Based on SSID/Client) Load Balance Airtime Fairness Band Steering Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static IP/Dynamic IPБезжична сигурностCaptive Portal Authentication△ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/EnterpriseПредават елна мощност 6–20 dBm (2.4 GHz, ERIP) 6–23 dBm (5 GHz, U-NII-1, U-NII-2A, ERIP) 6–27.5 dBm (5 GHz, U-NII-2C, ERIP) 6–23 dBm (6 GHz, ERIP)Omada App YesCentralized ManagementOmada Hardware Controller Omada Software Controller Omada Cloud-Based ControllerCloud Access Yes. Requiring the use of an Omada Controller. Сигнали по електронна поща YesУправление Вкл/Изкл на LED YesУправление на контрола на достъпа по МАС адрес YesSNMP v1, v2c, v3Влизане в системата Локално/Отдалечение System LogSSH YesУеб-базирано управление YesL3 управление YesУправление на множество сайтове YesУправление на VLAN YesZero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller. Сертификати CE, RoHSСистемни изисквания Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
