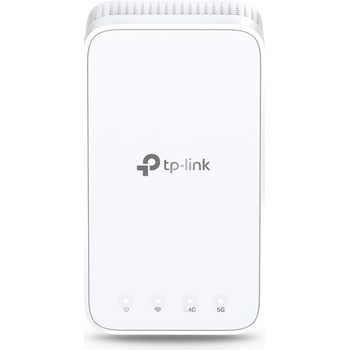

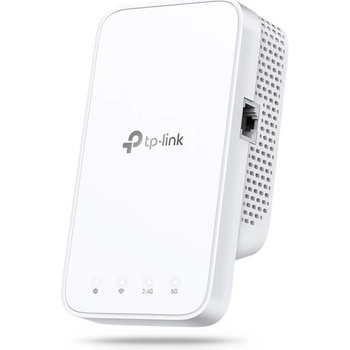

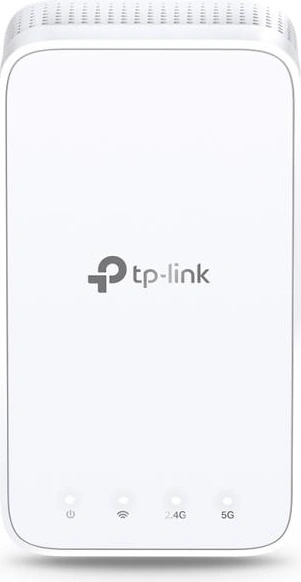

TP-Link RE330

TP-Link RE330



Boost WiFi Signal Wherever You Need it

A single router has limited WiFi coverage and always causes WiFi dead zones. RE330 wirelessly connects to your existing router and expands its WiFi signal into areas it can’t reach on its own. Enjoy stable and high-speed AC1200 network experience wherever you’re at your home.



Faster Dual Band WiFi Up to 1200 Mbps

The RE330 delivers dual band (2.4GHz and 5GHz) to transmit WiFi signal, doubling the performance of single band. It enables you to keep more devices connected at the same time with its 2.4GHz 300 Mbps and 5GHz 867 Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming.



Adaptive Path Selection: Keeps itself work at top-speed

Adaptive Path Selection keeps your network running at top-speed by automatically choosing the fastest connection path to the router. Always get your devices at fast and stable, especially ideal for network environment crowded with many devices and applications.

Built-in Access Point Mode

RE330 is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2×2 MIMO dual band wireless access point.



Спецификации



Хардуерни характеристики

Инте рфейс 1 x 10/100Mbps Ethernet Port (RJ45)
 Бутон WPS Button, Reset ButtonInput Power 100-240V~50/60HzКонсумирана енергия 9.5WРазмери (Ш x Д x В ) 2.7×1.4×4.9 in. (69.5×35.0×124.1 mm)Антена 2 Internal Antennas



Безжични характеристики

Безж ични стандарти IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHzЧестотa 2.4GHz & 5GHz(11ac)Скорост на сигнала 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHzWorking Modes Range Extender/Access PointЧувствителност при приемане 5 GHz:
11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm
11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm
11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm
2.4 GHz:
11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm
11n HT40 MCS7: -74dBmБезжични функции Enable/Disable Wireless Radio, Wireless StatisticsБезжична сигурност 64/128-bit WEP, WPA-PSK/WPA2-PSK encryptionsПредавателна мощност 2.4 GHz ≤20dBm, 5 GHz ≤30dBm



Други

Networ k Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443   Protocol: TCP
DHCP Server
IP address assignment (DHCP)
Port: 67   Protocol: UDP
App management
Manage and configure device through app
Port: 20001   Protocol: TCP
Port: 20002   Protocol: UDPСертификати FCC, RoHSСъдържание на пакета Wi-Fi Range Extender RE330
Quick Installation GuideСистемни изисквания Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browserОколна среда Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
