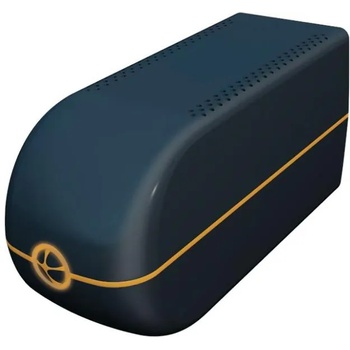

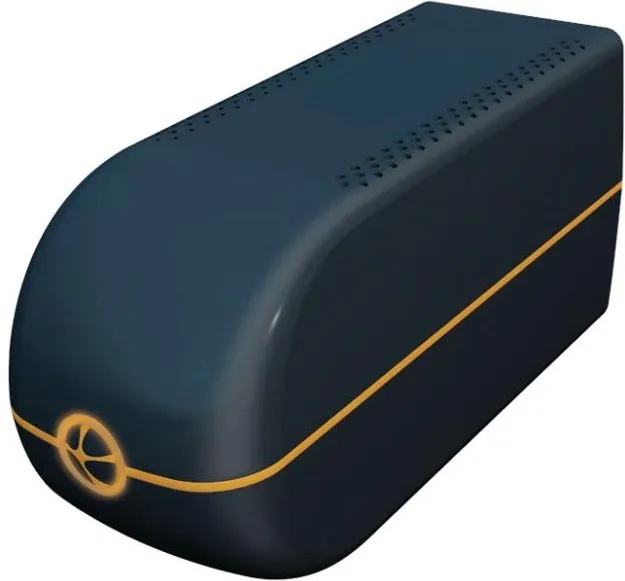

Tuncmatik Lite II 1000VA

TUNCMATIK LITE II 1KVA
TSK5208

General Properties
Product Code: TSK5208
EAN Code: 8697842803863
Series description: Lite II
Product description: Lite II 1000 VA
Capacity / Power: 1000 VA / 600 W
Display:LED Panel
Alarm:Battery mode, Low battery, Over load, Error

Input
Voltage: 220 / 230 / 240 VAC
Voltage range: 162-265 VAC
Frequency: 50 / 60 Hz ± 10%

Output
Voltage: 220 VAC
Voltage range: ± 10%
Frequency range (Synchronized): 50 / 60 Hz ± %4
Frequency range (Battery mode): 50 ± 0.25 Hz - 60 ± 0.3 Hz
Transfer time: 2 - 6 msec, 10 msec max.
Waveform: Simulated sine wave

Battery
Type & number of battery: 12V 7Ah x 2
Charge time:4-6 hours for recharging up to 90% capacity
Charge voltage: 27.0 VDC
Charge current: 1.0 A

Indicators & Alarm
LED indicator: AC mode, Battery mode, Fault conditions
Alarm:Battery mode, Low battery, Overload, Fault

Dimensions & Weight
D x W x H (mm): 392 x 179 x 209
Net weight (kg): 8

Environmental
Operating temperature: 0-40°C
Humidity:20-90% RH (non-condensing)
Noise level (audible): < 40 dBA
