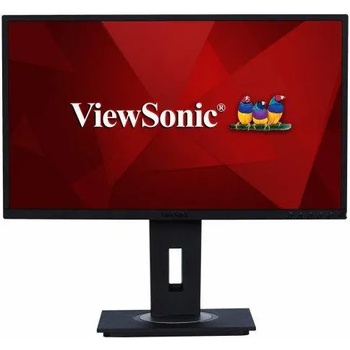

ViewSonic VG2448

vDisplay Manager

ViewSonic’s proprietary vDisplay Manager software is available for free and allows users to organise and divide their screen into multiple segments. The software also enables users to adjust their monitor settings via the software directly for a more efficient workflow.

Seamless Viewing

VG2448 has been designed with a narrow bezel on 3 sides, giving the monitor a clean look and a seamless flow when used in a multi-monitor setup. The inner edge of the bezel has been angled to directthe user’s focus to the center of the screen.

Clarity From Any Angle

Enjoy accurate and vivid colours with consistent levels of brightness no matter your vantage point. With SuperClear® IPS Panel Technology, VG2448 monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

SPECIFICATIONS

Display :

Display size (in. ) : 24

Viewable area (in. ) : 23.8

Panel type : IPS

Resolution : 1920 x 1080

Static contrast ratio : 1,000:1

Dynamic contrast ratio : 50,000, 000:1

Light source : WLED

Brightness : 250 cd/m2

Colors : 16.7M

Color space support : 6 bits

Aspect ratio : 16:9

Response time (typical gtg) : 14ms

Response time (gtg w/od) : 5ms

Viewing angles : 178º horizontal, 178º vertical

Backlight life (hours) : 30,000

Panel surface : 3H Anti-glare, hard-coating

Compatibility :

PC resolution (max) : 1920 x 1080

MAC® resolution (max) : 1920 x 1080

Connector :

USB 3.0 type A : 4

USB 3.0 type B : 1

VGA : 1

HDMI 1.4 : 1

Display port : 1

Audio :

Internal speakers : 2W (x2)

Power :

Eco mode (conserve) : 14.6

Eco mode (optimized) : 17.4W

Consumption (typical) : 25W

Consumption (max) : 57W

Voltage : AC 100-240V (universal), 50-60Hz

Stand-by : 0.5

Power supply : Internal

Kensigton lock slot : 1

Controls :

Physical controls : 1,2, Up, Down, Power

On Screen display : Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)

Operating Conditions :

Temperature : 32-104º F (0 - 40º C)

Humidity (non-condensing) : 20-90%

Mount :

VESA Compatible : 100 x 100 mm

Video Signal

Frequency horizontal : 24 ~ 82KHz

Frequency vertical : 50 ~ 75Hz

Video Input

Digital sync : TMDS for HDMI 1.4, PCI-E for DisplayPort

Ergonomics :

Height adjust (mm) : 130

Swivel : 120º

Pivot (right/left) : 90º / 90º

Tilt (forward/back) : 40º / 5º

Weight :

Net (KG) : 5.8

Net without stand (KG) : 3.4

Gross (KG) : 8.7

Dimensions :

Packaging (MM) : 604.0 x 385.0 x 210.0

Physical (MM) : 549.4 x 517.0 x 202.2

Physical without stand (MM) : 549.4 x 325.6 x 50.0
