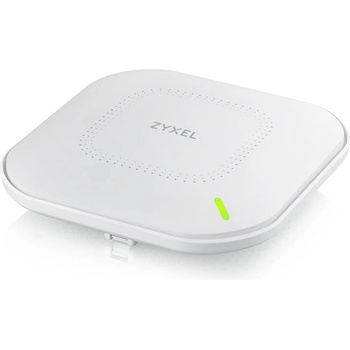

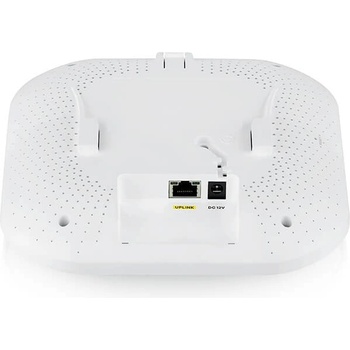

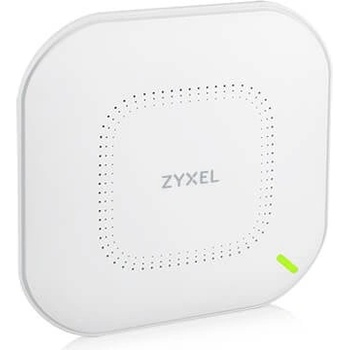

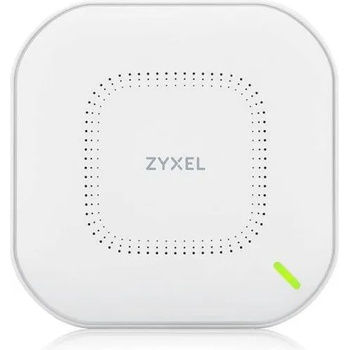

Zyxel WAX510D-EU0101F

True WiFi 6

The WAX510D is truly the next generation of wireless (WiFi 6) AP, especially for businesses looking to strike the right balance between performance and budget. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO, which can’t be found in the earlier releases of 802.11ax products. The WAX510D boasts an impressive quad-core processor with 2 network accumulators to guarantee that a smooth and consistently fast service is provided to each client at all times.

The smartest choice

The WAX510D is not only efficient at delivering impressive high speeds with smooth and consistent delivery to wireless clients, but also it’s efficient on power. The WAX510D can deliver its impressive performance while keeping the consumption of PoE within the PoE+ standard, so that you can enjoy the latest WiFi 6 technology offering without the need to invest in upgrading your traditional switching architecture.

Specifications

Product name

Description: 802.11ax (WiFi 6) Dual-Radio Unified Access Point

Wireless

Standard: IEEE802.11 ax / ac / n / g / b / a

MIMO: MU-MIMO

Wireless speed: 2.4GHz: 575Mbps, 5GHz: 1200Mbps

Frequency band

2.4 GHz (IEEE 802.11 b / g / n)

Europe (ETSI): 2.412 to 2.472 GHz

5 GHz (IEEE 802.11 a / n / ac)

5.725 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

RF Design

Antenna type: Dual optimized Antenna

Antenna gain:

2.4GHz: Peak Gain 5dBi

5GHz: Peak Gain 6dBi

Minimum Receive sensitivity: Min. Rx sensitivity up to -101 dBm

WLAN feature

Band Steering: Yes

WDS: Future suppoet

Mesh AP (By License): Future Support

Mesh AP for multiple SSID with VLAN: Future Support

Smart mesh: Future Support

Fast roaming: Pre-authentication, PMK caching and 802.11r

DCS (Auto Channel): Yes

Load balancing: Yes

Security

Wireless Security

• WPA


• WPA-PSK


• WPA-Enterprise (WPA / WPA2 / WPA3)

Access management

• L2-isolation


• MAC filtering


• Rogue AP detection


• EAP


• IEEE 802.1X


• RADIUS authentication

Networking

IPv6: Yes

VLANs: Yes

WMM: Yes

U-APSD: Yes

DiffServ marking: Yes

Physical Specifications

Dimensions (WxDxH) (mm / in. ): 180 x 180 x 39 / 7.09 x 7.09 x 1.54

Weight (g / lb. ): 453g / 1

Packing Dimensions (WxDxH) (mm / in. ): 229 x 216 x 64 / 9.02 x 8.5 x 2.52

Weight (g / lb. ): 770g / 1.7

Physical Interfaces

Ethernet port: 1 x 10/100 / 1000M LAN

Power: PoE (802.3) at: power draw 17 W

DC input: 12 VDC 1.5A
