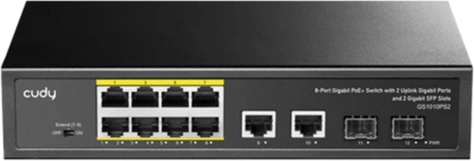

8-Port Gigabit PoE+ Switch with 2 GbE and 2 Gigabit SFP A rack-mounted Gigabit PoE switch with a 120W power supply and a silent cooling system.

• 8× GbE with 802.3at/af Mode A PoE
• 2× Uplink GbE + 2× Uplink SFP
• 120W Power Supply
• Extend for 250 meters Transmission 1
• Watchdog under Extend Mode
• Desktop, Rack-Mount
• 220×161×44 mm (8.66×6.34×1.73″)

  Specification Details1.25G SFP Slots 2Gigabit RJ45 Ports 10Gigabit RJ45 PoE Ports #1~#8Max Power on a Single PoE Port 30WPoE Port Notes The PoE ports comply with IEEE 802.3at/af standards. PoE priority ranks from #1~#8. Extend Mode Ports #7~#8LED PowerLink/ACT of Each Ethernet PortPhysical Buttons Default/Extend DIP switchPhysical Buttons Note The PoE Watchdog is on under the Extend mode and will attempt to reboot the plugged-in but inactive client. Max Copper Speed and Distance Cat. 3 or higher cable: 100 meters at 10 MbpsCat. 5 or higher cable: 100 meters at 100 MbpsCat. 5e or higher cable: 100 meters at GigabitCat. 5e or higher cable: 250 meters at 10 MbpsCopper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. Optical Spec and Distance Depends on the Installed Optical ModuleMAC Address Table 2048Max Switching Capacity 24 GbpsMax Forwarding Rate 17.856 MppsJumbo Frame 2 KBPacket Buffer 448 KbitPower Input Type AC InletPower Methods ACPower Input 100-240V~ 50/60HzPower Supply 120WMax Power Excluding PoE 10W802.3 Protocols 802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3z 1000BASE-X802.3x Flow Control802.3af PoE802.3at PoEGrounding Methods Three-Prong PlugEMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kVIEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kVEnvironment Operating Temperature: 0~40 ℃ (32~104 ℉)Storage Temperature: -40~70℃ (-40~158 ℉)Operating Humidity: 10~90% non-condensingStorage Humidity: 10~95% non-condensingDimension 220×161×44 mm8.66×6.34×1.73 inchesProduct Weight 934 g (32.95 oz. )Casing Material MetalInstallation DesktopRackmount via Brackets (Brackets not included in the box)Retail Package Dimension 315×215×85 mm12.4×8.46×3.35 inchesRetail Package Weight EU: 1299 g (45.82 oz. )
