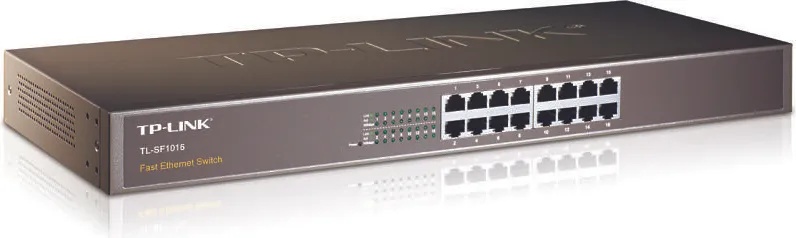

TL-SF1016

16-Port 10/100Mbps Rackmount Switch

16 10/100Mbps RJ45 ports
Innovative energy-efficient technology saves power up to 75%
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case

What This Product Does
The16-Port 10/100Mbps Rackmount Switch TL-SF1016 provides you with ahigh-performance, low-cost, easy-to-use, seamless and standard upgradeto improve old network to 100Mbps network. All 16 ports support autoMDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016can save up to 75%* of the power consumption and 80% of the packagingmaterial can be recycled, making it an eco-friendly solution for yourbusiness network.

TP-LINK Green Technology
Thisnew generation The 16-Port 10/100Mbps Switch TL-SF1016 features thelatest innovative energy-efficient technologies that can greatly expandyour network capacity with much less power. It automatically adjustspower consumption according to the link status and cable length to limitthe carbon footprint of your network. It also complies with the EU'SRoHS, prohibiting the use of certain hazardous materials. Besides, 80%of the packaging material can be recycled.


High Performance
Therack-mount size steel case design, combined with a safety-certifiedinternal power supply, make the switch the most robust product, which isvery cost-effective for a less than 16-user environment. Featuringnon-blocking switching architecture, TL-SF1016 forwards and filterspackets at full wire-speed for maximum throughput. And IEEE 802.3x flowcontrol for Full Duplex mode and backpressure for Half Duplex modealleviate the traffic congestion and make TL-SF1016 work reliably.

Easy to Use
Theauto features of this fast ethernet switch make installation plug andplay and hassle-free. No configuring is required. Auto MDI/MDIXeliminates the need for crossover cables. Auto-negotiation on each portsenses the link speed of a network device (10, 100 Mbps) andintelligently adjusts for compatibility and optimal performance.


HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Interface
16 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity
Fanless

Physical Security Lock
Yes

Power Supply
100-240VAC, 50/60Hz

Power Consumption
Maximum: 2.1W

Dimensions ( W x D x H )
17.3*7.1*1.7 in. (440*180*44 mm)

Max Power Consumption
2.06W(220V/50Hz)

Max Heat Dissipation
7.03BTU/h

PERFORMANCE

Switching Capacity
3.2Gbps

Packet Forwarding Rate
2.38Mpps

MAC Address Table
8K

Buffer Memory
2Mb

Advanced Functions
Green Technology
802.3X Flow Control

Green Technology
Innovative energy-efficient technology saves power up to 70%

Transfer Method
Store-and-Forward

OTHERS

Certification
FCC, RoHS

Package Contents
16-Port 10/100Mbps Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet

Environment
Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
