CPU

AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list. )

(Please refer "CPU Support List" for more information. )

Chipset

AMD A620

Memory

Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200 /4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information. )

Onboard Graphics
Onboard Graphics
Integrated Graphics Processor:

1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support. ) Support for up to 3 displays at the same time

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots
Expansion Slots
CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
Storage Interface
CPU:

1 x M. 2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

Chipset:

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB
CPU:

2 x USB 3.2 Gen 1 ports on the back panel
1 x USB 2.0/1.1 port on the back panel

Chipset:

2 x USB 3.2 Gen 1 ports available through the internal USB header
7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M. 2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper

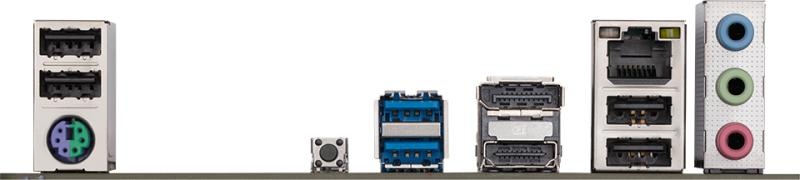

Back Panel Connectors

4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash Plus
Support for Q-Flash

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 23.0cm x 22.5cm

Гаранция: 36 месеца
Официална страница на продукта:https://www. gigabyte. com/Motherboard/A620M-H-rev-10#kf

Продукт известен още и като A 620 M H, A620MH, A 620M H
