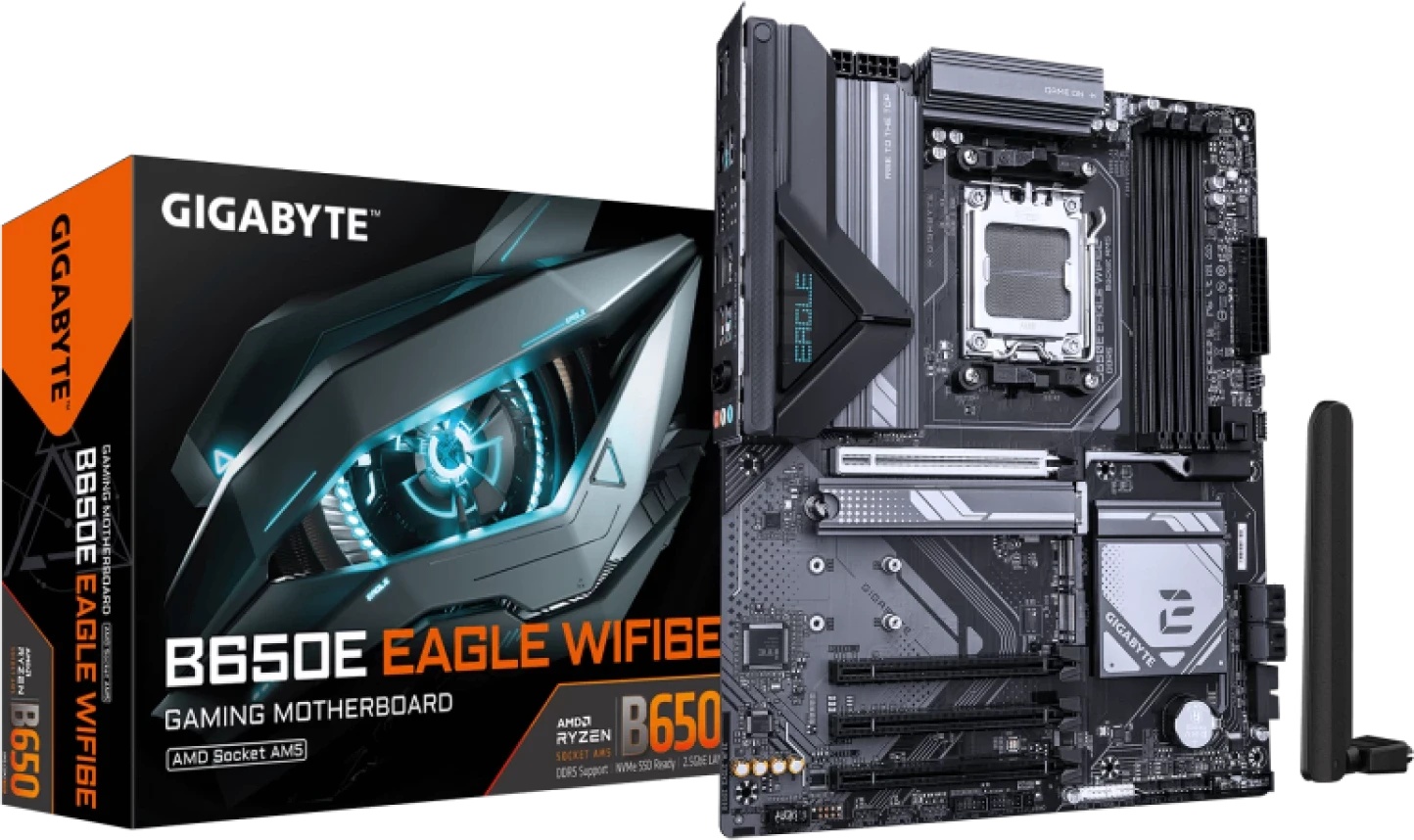

GIGABYTE B650E EAGLE WIFI6E Дънни платки
GIGABYTE B650E EAGLE WIFI6E Дънни платки
от 145,99 €
7 оферти
Маркирани оферти за GIGABYTE B650E EAGLE WIFI6E Как са подбрани?
Маркирани оферти
GIGABYTE B650E EAGLE WF6E - 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 4xPCIEx16 WiFi (B650E EAGLE WF6E 1.0)
178,90 €
Информация в магазина
Още оферти за GIGABYTE B650E EAGLE WIFI6E
Още оферти
Gigabyte дънна платка am5 b650e eagle amd b650, atx (b650e eagle)
Още 1 оферти
Затвори офертите
145,99 €
Информация в магазина
Още подобни стоки от най-популярните
Други стоки марка GIGABYTE: GIGABYTE Дънни платки
от 135,00 €
ASRock B650 PG Lightning
от 183,00 €
ASUS ROG STRIX B650-A GAMING WIFI
от 146,73 €
ASUS TUF Gaming B650-PLUS
от 168,00 €
ASUS TUF Gaming B650-PLUS WIFI
Описание, детайли - GIGABYTE B650E EAGLE WIFI6E
Ценова графика
Така ще разберете кога се променя цената на стоката.
Известие за цена
Услугата Известие за цена Ви уведомява, когато цената на стоката падне под избраната стойност.
Най-ниска актуална цена: 145,99 €
Описание
| CPU Socket | Socket AM5 |
| Чипсет | AMD B650 |
| Марка процесор | AMD |
| Тип на паметта | DDR5 |
Изходи | |
| Слот на видеокартата | PCI-Express |
| Multi VGA | Няма |
| D-SUB | Не |
| DVI | Не |
| HDMI | Да |
| DisplayPort | Да |
Изводи | |
| Брой слотове за памет | 4 |
| Брой SATA интерфейси | 4 |
| Брой слотове PCI-Express 16x | 4 |
| Брой слотове PCI-Express 8x | Няма |
| Брой слотове PCI-Express 4x | Няма |
| Брой слотове PCI-Express 1x | Няма |
| Брой слотове PCI | Няма |
Портове | |
| SATA 3 интерфейси | 4 |
| m.2 интерфейси | 3 |
| Брой USB портове | 2 |
| USB 2.0 на задния панел | 4 |
Още параметри | |
| Максимален капацитет памет | 256 GB |
| Интегрирана звукова карта | Да |
| Аудио канали | 7.1 |
| Звукова карта тип | Realtek 7.1 |
| Цифров аудио изход | Няма |
| Интегрирана LAN връзка | 10/100/1000/2500 Mbit/s |
| Wireless LAN | Да |
| Bluetooth | Да |
| RAID адаптер | Да |
| RAID нива | 0, 1, 5, 10 |
| Формат | ATX |
| Размер на дънната платка | 305 x 244 |
Виждате грешка в описанието или таблицата? Сигнализирайте ни!
Технически детайли
USB:CPU:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support;- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);- 4 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports available through the internal USB headers
Manufacturer:GIGABYTE
Wireless:MediaTek Wi-Fi 6E MT7902;- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard;(Actual data rate may vary depending on environment and equipment. );* Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
Memory type:Support for DDR5 8200(O. C) / 8000(O. C) / 7950(O. C) / 7900(O. C) / 7800(O. C) / 7600(OC)/ 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)5200/4800 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Features:Support for GIGABYTE Control Center (GCC);;Support for Q-Flash;Support for Q-Flash Plus;Support for Smart Backup
CPU's supported:AMD Socket AM5, support for:;AMD Ryzen 9000 Series Processors/;AMD Ryzen 8000 Series Processors/;AMD Ryzen 7000 Series Processors
Chipset:AMD B650
Bluetooth:5.3
Graphics:Integrated Graphics Processor with AMD Radeon Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version and HDR. ;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR. ;** Support for native HDMI 2.1 TMDS compatible ports.
Expansion Slots:1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;-AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode;-AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;-AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;Chipset:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4);- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage:1 x M. 2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:;-AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;-AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M. 2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:;-AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs;1 x M. 2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;* RAID 5 is only available on AMD Ryzen 9000 Series Processors. ;RAID 0, RAID 1, and RAID 10 support for SATA storage devices
I/O:iTE® I/O Controller Chip
Connectors:1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x 4-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;3 x M. 2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;1 x DisplayPort (Note);1 x HDMI port (Note);1 x Q-Flash Plus button;4 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;2 x USB 3.2 Gen 2 Type-A ports (red);1 x USB Type-C® port, with USB 3.2 Gen 1 support;1 x RJ-45 port;2 x USB 3.2 Gen 1 ports;2 x antenna connectors (1T1R);3 x audio jacks
Audio:Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
LAN:Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS:1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor:ATX Form Factor; 30.5cm x 24.4cm
OS:Support for Windows 11 64-bit;Support for Windows 10 64-bit
Сайт на производителя:https://www. gigabyte. com/Motherboard/B650E-EAGLE-WIFI6E
Продукт известен още и като B 650 E EAGLE WIFI 6 E, B650EEAGLEWIFI6E, B 650E EAGLE WIFI6E
USB:CPU:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support;- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);- 4 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports available through the internal USB headers
Manufacturer:GIGABYTE
Wireless:MediaTek Wi-Fi 6E MT7902;- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard;(Actual data rate may vary depending on environment and equipment. );* Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
Memory type:Support for DDR5 8200(O. C) / 8000(O. C) / 7950(O. C) / 7900(O. C) / 7800(O. C) / 7600(OC)/ 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)5200/4800 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Features:Support for GIGABYTE Control Center (GCC);;Support for Q-Flash;Support for Q-Flash Plus;Support for Smart Backup
CPU's supported:AMD Socket AM5, support for:;AMD Ryzen 9000 Series Processors/;AMD Ryzen 8000 Series Processors/;AMD Ryzen 7000 Series Processors
Chipset:AMD B650
Bluetooth:5.3
Graphics:Integrated Graphics Processor with AMD Radeon Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version and HDR. ;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR. ;** Support for native HDMI 2.1 TMDS compatible ports.
Expansion Slots:1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;-AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode;-AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;-AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;Chipset:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4);- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage:1 x M. 2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:;-AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;-AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M. 2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:;-AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs;1 x M. 2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;* RAID 5 is only available on AMD Ryzen 9000 Series Processors. ;RAID 0, RAID 1, and RAID 10 support for SATA storage devices
I/O:iTE® I/O Controller Chip
Connectors:1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x 4-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;3 x M. 2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB Type-C® header, with USB 3.2 Gen 1 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);1 x reset button;1 x reset jumper;1 x Clear CMOS jumper;Back Panel Connectors;1 x DisplayPort (Note);1 x HDMI port (Note);1 x Q-Flash Plus button;4 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;2 x USB 3.2 Gen 2 Type-A ports (red);1 x USB Type-C® port, with USB 3.2 Gen 1 support;1 x RJ-45 port;2 x USB 3.2 Gen 1 ports;2 x antenna connectors (1T1R);3 x audio jacks
Audio:Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
LAN:Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS:1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor:ATX Form Factor; 30.5cm x 24.4cm
OS:Support for Windows 11 64-bit;Support for Windows 10 64-bit
Сайт на производителя:https://www. gigabyte. com/Motherboard/B650E-EAGLE-WIFI6E
Продукт известен още и като B 650 E EAGLE WIFI 6 E, B650EEAGLEWIFI6E, B 650E EAGLE WIFI6E
