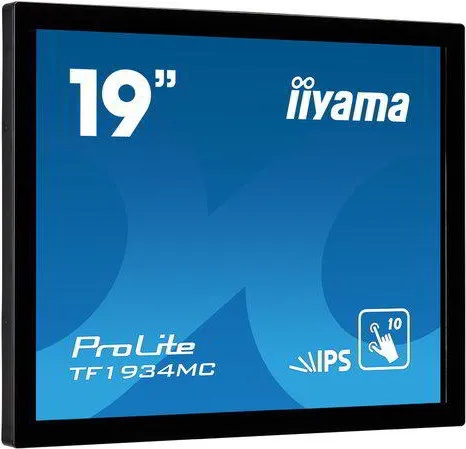

TF1934MC-B7X

ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.



Design
Open Frame

Diagonal
19", 48cm

Panel
IPS LED

Native resolution
1280 x 1024 (1.3 megapixel)

Aspect ratio
5:4

Brightness
350 cd/m2 typical

Brightness
315 cd/m2 with touch

Static contrast
1000:1 with touch

Light transmittance
90%

Response time (GTG)
14ms

Viewing zone
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support
16.7mln

Horizontal Sync
31.4 - 80kHz

Viewable area W x H
376.5 x 301.1mm, 14.8 x 11.9"

Pixel pitch
0.294mm

Bezel colour and finish
black, matte



Touch technology
projective capacitive

Touch points
10 (HID, only with supported OS)

Touch method
stylus, finger, glove (latex)

Touch interface
USB

Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Through-Glass
6mm

Palm rejection
yes

Analog signal input
VGA x1

Digital signal input
HDMI x1

DisplayPort x1

HDCP
yes

Extra
anti-fingerprint coating, touch through-glass

Glass hardness
7H

Water and dust protection
IP65 (front)

OSD key lock
yes

OSD languages
EN, DE, FR, ES, IT, CN, JP

Control buttons
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power

User controls
picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp. , sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)

Plug&Play
DDC2B
