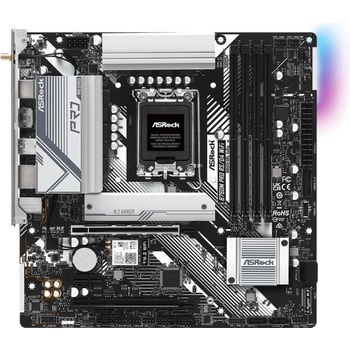

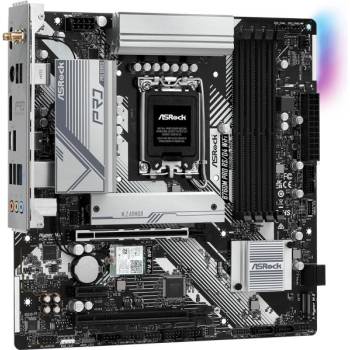

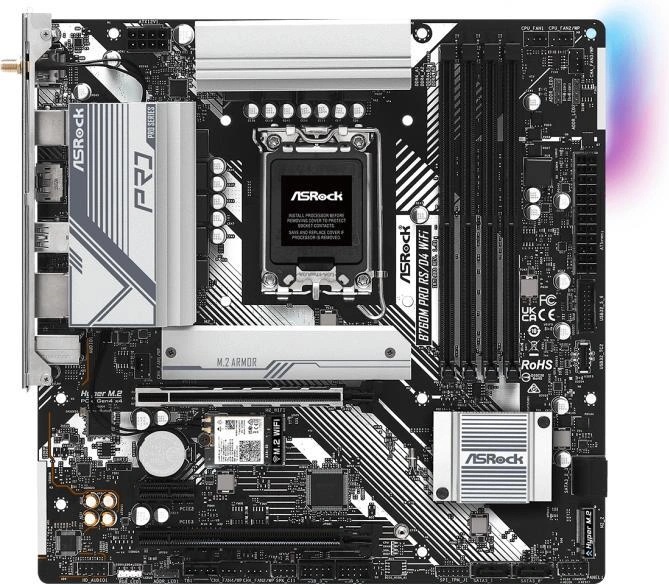

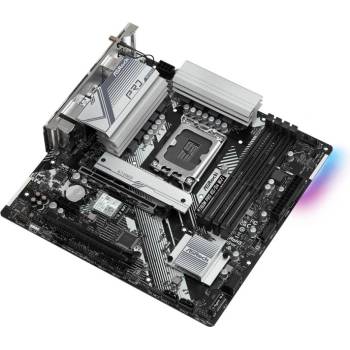

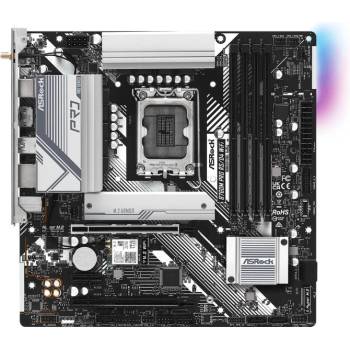

ASRock B760M PRO RS/D4 WIFI

DescriptionMotherboard B760M PRO RS/D4 WIFI

• Supports 13th and 12th generation Intel Core processors (LGA1700)
• 7+1+1 Power Phase, Dr. MOS for VCore+GT
• Supports DDR4 5333MHz (OC)
• 2 PCIe 4.0 x16, 1 PCIe 4.0 x1
• Graphics outputs: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 2 Hyper M. 2 (PCIe Gen4x4)
• 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
• 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
• 6 USB 2.0 (2 Rear, 4 Front)
• Dragon 2.5G LAN,
• 802.11ax (WiFi 6E) + Bluetooth 5.3
• Supports ASRock Auto Driver Installer

Model:B760M PRO RS/D4 WIFICPU socket:LGA1700Processor family:Intel Core i9
Intel Pentium
Intel Core i3
Intel Core i5
Intel Core i7
Intel CeleronIntegrated CPU:NoChipset manufacturer:IntelChipset type:Intel B760Memory type:DDR4Number of DDR4 slots:4Memory bus frequency:5333 MHzMax memory size:128 GBExpansion slots:2 x PCIe 4.0 x 16
1 x PCIe 4.0 x 1Max. number of SATA devices:4RAID:YesDetailed data on disk/drive interfaces:CPU:

• 1 x Hyper M. 2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

• 1 x Hyper M. 2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors

Graphics:

• Intel Xe Graphics Architecture (Gen 12)
• HDMI 2.1 TMDS Compatible, supports HDCP 2.3 up to 4K 60Hz
• DisplayPort 1.4 with DSC (compressed), HDCP 2.3 support up to 8K 60Hz / 5K 120Hz

*Intel UHD Graphics Built-in Visual and image output technologies can only be supported by processors with an integrated GPU. Sound card:

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

Network interface:1 x 10/100/1000/2500 Mbit/s
Wi-Fi 802.11a/b/g/n/ac/ax
BluetoothNetwork interface:LAN:

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control

Wireless LAN:

• 802.11ax Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Obsługa Dual-Band 2x2 z rozszerzoną obsługą pasma 6GHz*
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.3 + High speed class II
• Supports MU-MIMO

USB ports at back panel:6USB ports on motherboard:7Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports:5Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports:2FireWire (IEEE 1394):NoCOM connector / port:NoLPT connector / port:NoExternal connectors:2 x SMA
1 x Line Out
1 x MIC
1 x RJ-45
2 x USB 2.0
3 x USB 3.0
1 x USB 3.1 Type-C
1 x HDMI
1 x Line In
1 x PS/2 Keyboard/MouseCombo
1 x DisplayPortOnboard connectors:3 x Addressable LED
1 x Front panel audio header
1 x Chassis intrusion header
1 x Thunderbolt header
1 x 4pin CPU fan
1 x 4pin CPU/Water Pump Fan Connector
4 x 4pin Chassis/Water Pump Fan Connectors
1 x 8pin 12V power
1 x 24pin ATX zasilanie
4 x USB 2.0/1.1
2 x USB 3.0 header
1 x USB C
1 x RGB LED strip header
1 x TPM headerSpecial functions:Solid as a Rock:

• 7+1+1 Power Phase, 50A Dr. MOS for VCore+GT
• Pre-Installed I/O Port Cover
• ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
• Ultrafast Connectivity: 2.5G LAN
• 802.11ax WiFi 6E Module
• EZ Updates: Automatic ASRock Driver Installer
• EZ Troubleshooter: ASRock Post Status Checker

BIOS:128Mb AMI UEFI Legal BIOS z obsługą GUIForm factor:micro ATXDimensions:24.4 x 24.4 cmAccessories included:

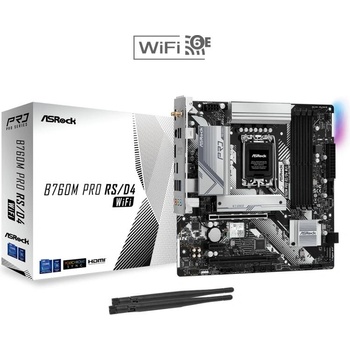

• User manual
• 2 x SATA data cable
• 2 x ASRock Wi-Fi 2.4/5/6GHz Antenna
• 2 x Screws for M. 2 slot
• Spacer for M. 2 slot

Supported operating systems:Windows 11
Windows 10Software:Software:

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC

UEFI:

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• Automatic ASRock Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer
