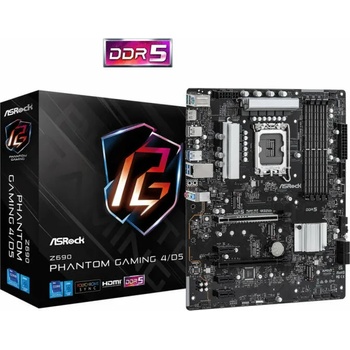

ASRock Z690 Phantom Gaming 4/D5

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4
Дънна платка ASRock Z690 Phantom Gaming 4 DDR5, LGA1700, ATX, Polychrome RGB

CPU Socket: 1700
Чипсет: Intel Z690
Поддържани процесори: Supports 12th Gen Intel® Core Processors (LGA1700)
Форм фактор: ATX
Поддърж на памет: DDR5
Максима лен капацитет RAM памет: 128 GB
Слотове памет: 4
Честота памет: 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/4800 Non-ECC, Un-buffered Memory
Поддръжка на Dualchannel: Да
Графичн а карта: Intel® Xe Graphics Architecture (Gen 12)
Вградено аудио: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Вграден LAN: Gigabit LAN 10/100/1000 Mb/s
Слотoве PCI-E x16: 1 x PCIe 4.0 x16
Слотoве PCI-E x16: 1 x PCIe 5.0 x16
Слотoве PCI-E x1: 3
Интерфей Serial ATA: 4 x SATA3 6.0 Gb/s
М2 слот: Supports Intel® Optane Technology
М2 слот: 1 x Hyper M. 2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
М2 слот: 1 x Hyper M. 2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
М2 слот: 1 x Hyper M. 2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
Поддръжка на RAID: 0, 1, 5, 10
Конектор захранване: 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
Конектор захранване: 1 x 24 pin ATX Power Connector
Конектор захранване: 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
Видео слот: PCI Express
Мулти GPU технология: Supports AMD Quad CrossFireX and CrossFireX
Свързано ст: - 3 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
USB Type-C: 1
USB 3.2: 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
USB 3.2: 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
USB 2.0: 2
Размери: 30.5 cm x 24.4 cm
Поддържани технологии: Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer
Комплект т включва: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 4 x Screws for M. 2 Sockets
Други: 128Mb AMI UEFI Legal BIOS with multilingual GUI support

Дънна платка ASRock Z690 Phantom Gaming 4 DDR5, LGA1700, ATX, Polychrome RGB

Z690 Phantom Gaming 4/D5

• Supports 12th Gen Intel ®  Core Processors (LGA1700)
• 9 Phase Dr. MOS Power Design
• Supports DDR5 5800MHz (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1
  1 M. 2 Key-E for WiFi
• Graphics Output Options: HDMI
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3
  2 Hyper M. 2 (PCIe Gen4 x4)
  1 Hyper M. 2 (PCIe Gen4 x4 & SATA3)
• 1 USB 3.2 Gen2x2 Front Type-C
  2 USB 3.2 Gen2 (Rear Type A+C)
  8 USB 3.2 Gen1 (4 Rear, 4 Front)
• Intel ®  Gigabit LAN
