Технически детайли

Vendor_url:https://www. asus. com/motherboards-components/motherboards /prime/prime-h610m-k-d4-argb/
Manufacturer:Asus

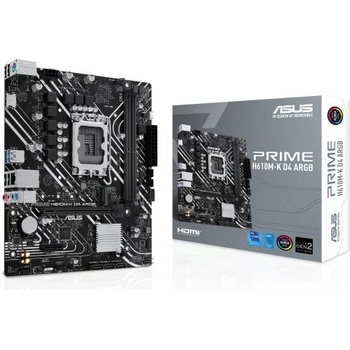

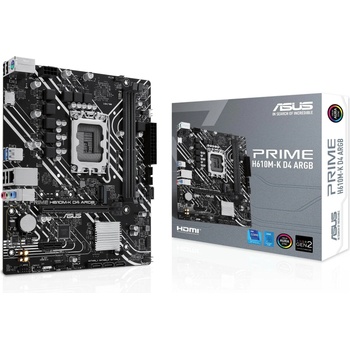

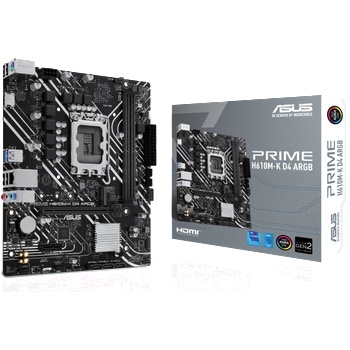

Model:PRIME H610M-K D4 ARGB
Graphics:1 x HDMI port**;
* Graphics specifications may vary between CPU types. Please refer to www. intel. com for any updates. ;
** Supports 4K@60Hz as specified in HDMI 2.1.
CPU's supported:Intel® Socket LGA1700 for Intel® Core 14th & 13th Gen Processors, Intel® Core 12th Gen, Pentium® Gold and Celeron® Processors*;
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**;
* Refer to www. asus. com for CPU support list. ;
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset:Intel® H610
Expansion slots:Intel® Core Processors (14th & 13th & 12th Gen);
1 x PCIe 4.0 x16 slot (supports x16 mode);
Intel® H610 Chipset;
1 x PCIe 3.0 x1 slot;
- To ensure compatibility of the device installed, please refer to https://www. asus. com/support/ for the list of supported peripherals.
Storage:Supports 1 x M. 2 slot and 4 x SATA 6Gb/s ports;
Intel® H610 Chipset;
M. 2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode);
4 x SATA 6Gb/s ports
Memory type:2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*;
Dual channel memory architecture;
Supports Intel® Extreme Memory Profile (XMP) memory module
Rear panel I/O:2 x USB 5Gbps ports (2 x Type-A);
4 x USB 2.0 ports (4 x Type-A);
1 x HDMI port;
1 x Realtek 1Gb Ethernet port;
3 x Audio jacks;
1 x PS/2 keyboard/mouse combo port
USB:Rear USB (Total 6 ports);
2 x USB 5Gbps ports (2 x Type-A);
4 x USB 2.0 ports (4 x Type-A);
Front USB (Total 3 ports);
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;
1 x USB 2.0 header supports 1 additional USB 2.0 port
Connectors:Fan and Cooling Related;
1 x 4-pin CPU Fan header;
1 x 4-pin Chassis Fan header;
Power Related;
1 x 24-pin Main Power connector;
1 x 8-pin +12V Power connector;
Storage Related;
1 x M. 2 slot (Key M);
4 x SATA 6Gb/s ports;
USB;
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;
1 x USB 2.0 header supports 1 additional USB 2.0 port;
Miscellaneous;
2 x Addressable Gen 2 headers;
1 x Clear CMOS header;
1 x COM Port header;
1 x Front Panel Audio header (F_AUDIO);
1 x S/PDIF Out header;
1 x Speaker header;
1 x SPI TPM header (14-1 pin);
1 x 10-1 pin System Panel header
Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC*;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- Supports up to 24-Bit/192 kHz playback;
Audio Features;
- Audio Shielding;
- Premium audio capacitors;
- Dedicated audio PCB layers;
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Lan:1 x Realtek 1Gb Ethernet
BIOS:128 Mb Flash ROM, UEFI AMI BIOS
Form factor:micro-ATX Form Factor;
23.4 cm x 20.3 cm
OS:Windows® 11, Windows® 10 64-bit

Продукт известен още и като PRIME H 610 M K D 4 ARGB, PRIMEH610MKD4ARGB, PRIME H610M K D4 ARGB, PRIMEH610M-KD4ARGB
