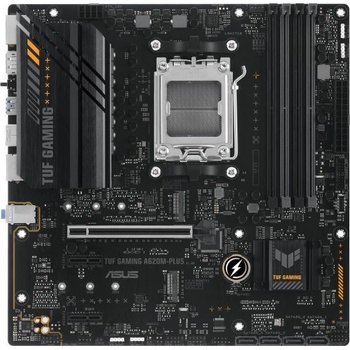

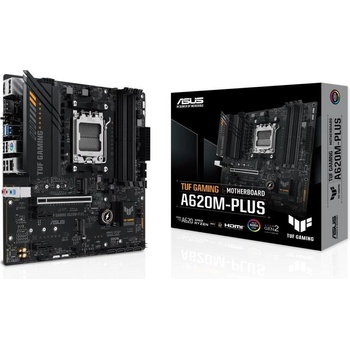

ASUS TUF Gaming A620M-PLUS

Технически детайли

Vendor_url:https://www. asus. com/motherboards-components/motherboards /tuf-gaming/tuf-gaming-a620m-plus/
Manufacturer:Asus
Model:TUF GAMING A620M-PLUS
Graphics:2 x DisplayPort**;
1 x HDMI port***;
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ;
** Supports max. 8K@30Hz as specified in DisplayPort 1.4. ;
*** Supports 4K@60Hz as specified in HDMI 2.1.
CPU's supported:AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors;
Supports up to AMD 170W CPU
Chipset:AMD A620A Chipset
Expansion slots:AMD Ryzen 9000 & 7000 Series Desktop Processors;
1 x PCIe 4.0 x16 slot (supports x16 mode);
AMD Ryzen 8000 Series Desktop Processors;
1 x PCIe 4.0 x16 slot (supports x8/x4 mode);
AMD A620A Chipset;
1 x PCIe 3.0 x1 slot
Storage:Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports;
AMD Ryzen 9000 & 7000 Series Desktop Processors;
M. 2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);
M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);
AMD Ryzen 8000 Series Desktop Processors;
M. 2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);
M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode);
AMD A620A Chipset;
4 x SATA 6Gb/s ports
RAID:AMD RAIDXpert2 Technology;
Ryzen 9000 Series Processors: RAID 0/1/5/10;
Ryzen 8000 Series Processors: RAID 0/1;
Ryzen 7000 Series Processors: RAID 0/1/10
Memory type:4 x DIMM slots, max. 192GB, DDR5 ECC and Non-ECC Un-buffered DIMM;
Supports up to 7600+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors;
Dual channel memory architecture;
Supports AMD Extended Profiles for Overclocking (EXPO);
ASUS Enhanced Memory Profile (AEMP)
Rear panel I/O:2 x USB 10Gbps ports (2 x Type-A);
4 x USB 2.0 ports (4 x Type-A);
2 x DisplayPort;
1 x HDMI port;
1 x Realtek 2.5Gb Ethernet port;
3 x Audio jacks;
1 x BIOS FlashBack button;
1 x PS/2 keyboard/mouse combo port
USB:Rear USB (Total 6 ports);
2 x USB 10Gbps ports (2 x Type-A);
4 x USB 2.0 ports (4 x Type-A);
Front USB (Total 7 ports);
1 x USB 5Gbps connector (supports USB Type-C®);
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;
2 x USB 2.0 headers support 4 additional USB 2.0 ports;
* USB Type-C® power delivery output: max. 5V/3A
Connectors:Fan and Cooling Related;
1 x 4-pin CPU Fan header;
2 x 4-pin Chassis Fan headers;
Power Related;
1 x 24-pin Main Power connector;
1 x 8-pin +12V CPU Power connector;
Storage Related;
2 x M. 2 slots (Key M);
4 x SATA 6Gb/s ports;
USB;
1 x USB 5Gbps connector (supports USB Type-C® );
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;
2 x USB 2.0 headers support 4 additional USB 2.0 ports;
Miscellaneous;
3 x Addressable RGB Gen 2 headers;
1 x Clear CMOS header;
1 x COM Port header;
1 x Front Panel Audio header (F_AUDIO);
1 x S/PDIF Out header;
1 x 10-1 pin Front Panel System header
Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC*;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- Supports up to 24-Bit/192 kHz playback;
Audio Features;
- Audio Shielding;
- Premium audio capacitors;
- Dedicated audio PCB layers;
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Lan:1 x Realtek 2.5Gb Ethernet;
TUF LANGuard
BIOS:256 Mb Flash ROM, UEFI AMI BIOS
Form factor:micro-ATX Form Factor
OS:Windows 11, Windows 10 64-bit
Dimensions:24.4 cm x 24.4 cm
