Axis Communications M2036-LE (02134-001)

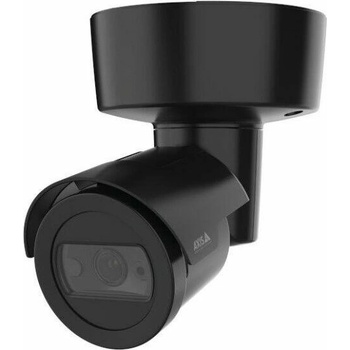

AXIS M2036-LE Black 4MPix Network Bullet Camera
id="p47080187"> AXIS M2036-LE Black 4MPix Network Bullet CameraManufacturer AXIS COMMUNICATIONSManufacturer Part No 02134-001Marketing DescriptionIdeal for tough environments, this outdoor-ready bullet-style camera offers affordable Axis excellence. Lightweight and compact in design, it's easy to install and supports analytics with deep learning. Product Features

• Affordable Axis excellence
  Axis M2036-LE delivers Quad HD 1440p/4 MP and a horizontal field of view of 129°. With a deep learning processing unit (DLPU), you can benefit from applications based on deep learning on the edge. Thanks to Axis object analytics, it offers detection and classification of humans, vehicles, and types of vehicles - all tailored to your specific needs. And Axis edge vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This outdoor-ready bullet-style camera features built-in IR illumination, enabling unobtrusive surveillance in total darkness. Wide Dynamic Range (WDR) ensures clarity even when there's both dark and light areas in the scene.
• Top performance in tough conditions
  Ideal for both hot and cold environments, this IK08-rated bullet camera can withstand temperatures as low as -30°C and as high as 50°C (-22?F to 122?F). It includes an integrated sunshield for protection against sun and rain. Additionally, with IP66, IP67, and NEMA 4X ratings, it's resistant to rough weather, dust, sand, salt spray, ice formation, and high-water pressure. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis outdoor horn speaker
• Installation that's as easy as 1,2, 3
  This small, lightweight bullet-style camera offers cost-efficient installation both indoors and outdoors. A spacious, sealed back box ensures secure cable management and offers installers greater accessibility, freedom of movement, and future serviceability. Delivered with a factory-focused lens, there's no need for hands-on fine-tuning saving you time and effort. This easy-to-handle camera supports Power over Ethernet (PoE) so you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, Axis M2036-LE offers flexible installation; outdoors or indoors, on walls, ceilings, poles, or in corners.

GeneralDevice TypeNetwork surveillance cameraForm FactorBulletConnectivity TechnologyWiredWidth10.1 cmDepth17 cmHeight10.1 cmWeight491 gCameraTypeColour - Day&Night - fixed - outdoor - weatherproofDigital Video FormatMPEG-4, MJPEG, H. 264, AVC, HEVC, H. 265, MPEG-H Part 2Max Digital Video Resolution2688 x 1520Motion DetectionYesVideo Modes1440pExposure Range1/5 sec - 1/38500 secMinimum Illumination0.18 lux - colour - F2.1 - 50 IRE
0.04 lux - B&W - F2.1 - 50 IRE
0 lux - IRInfrared LEDsYesInfrared Distance20 mFrame Rate (max)30 frames per secondRAM512 MBFlash Memory1 GBFeaturesSharpness control, white balance, colour control, progressive scanning, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), infrared cut filter, Privacy Mask Function, Video Motion Detection Technology, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, Edge Storage, Variable Bitrate (VBR), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, plastic housing, digest authentication, IP address filtering, HTTPs encryption, aluminium housing, signed firmware, secure boot, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), VAPIX support, motion-adaptive exposure, compression, text overlay, 180° image rotation, 90° image rotation, 270° image rotation, user access log, centralised certificate management, brute force delay protection, ONVIF (Profile M) support, remote zoom, Axis Edge VaultImage SensorType4 MP PS RGB CMOS 1/2.7"Lens ConstructionTypeFixed focalFocal Length2.4 mmLens IrisF/2.1 fixed irisMin Focus Distance0.5 mHorizontal Field of View (degree)130Vertical Field of View (degree)81InterfacesNetwork InterfaceEthernet 10Base-T/100Base-TXNetwork ProtocolsDHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, USGv6, MQTTExpansion / ConnectivityPortsLAN/power - RJ-45Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC CardMiscellaneousIncluded AccessoriesTorx L-keyCompliant StandardsCISPR 24, EN 61000-6-1, EMC, NEMA Type 4X, EN 61000-6-2, IP67, FCC Part 15 B Class A, IP66, VCCI Class A, NEMA TS-2, RCM, EN 60529, IS13252, IEC 62471, IEC 60529, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEEE 802.3af, IEEE 802.3at, IEC/EN 62262, IEC 60068-2, EN 55035, CISPR 35, IEEE 802.1x, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62368-1, IK08ColourBlack, NCS S 9000-NPowerPower RequirementsPoE Plus Class 3Power Device5 WattSoftware / System RequirementsSoftware IncludedWindows decoder 1-user licenceManufacturer WarrantyService & SupportLimited warranty - 5 yearsEnvironmental ParametersMin Operating Temperature-30 °CMax Operating Temperature50 °CRelative Humidity (operating)10 - 100% RH Technical data provided by third party. We assume no liability for errors within these data.
