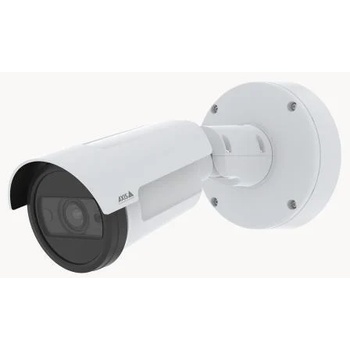

Axis Communications P1465-LE (02339-001)

Image sensor

1/2.8 progressive scan RGB CMOS

Pixel size 2.9 μm



Lens

Varifocal, remote focus and zoom, P-Iris control, IR corrected

Varifocal, 3-9 mm, F1.6-3.3

Horizontal field of view 117˚-37˚

Vertical field of view 59˚-20˚

Minimum focus distance: 0.5 m



Minimum illumination

0 lux with IR illumination on

Color: 0.06 lux, at 50 IRE F1.6

B/W: 0.01 lux, at 50 IRE F1.6



System on chip (SoC)

Model ARTPEC-8

Memory 1024 MB RAM

Flash 8192 MB

Compute capabilities Deep learning processing unit (DLPU)

Video compression

H. 264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles

H. 265 (MPEG-H Part 2/HEVC) Main Profile

Motion JPEG

Resolution

16:9: 1920x1080 to 160x90

16:10: 1280x800 to 160x100

4:3: 1280x960 to 160x120

Frame rate

With Forensic WDR: Up to 25/30 fps (50/60 Hz) in all resolutions

No WDR: Up to 50/60 fps (50/60 Hz) in all resolutions

Video streaming Up to 20 unique and configurable video streams

Axis Zipstream technology in H. 264 and H. 265

Controllable frame rate and bandwidth

VBR/ABR/MBR H. 264/H. 265

Low latency mode

Video streaming indicator



Signal-to-noise ratio

>55 dB

WDR Forensic WDR: Up to 120 dB depending on scene

Multi-view streaming

Up to 8 individually cropped out view areas

Noise reduction

Spatial filter (2D noise reduction)

Temporal filter (3D noise reduction)

Image settings

Saturation, contrast, brightness, sharpness, white balance, day/night threshold, exposure mode, exposure zones, defogging, compression, orientation: auto, 0°, 90°, 180°, 270° including corridor format, mirroring of images, dynamic text and image overlay, polygon privacy masks, barrel distortion correction

Scene profiles: forensic, vivid, traffic overview

Image processing

Axis Zipstream, Forensic WDR, Lightfinder 2.0, OptimizedIR

Pan/Tilt/Zoom

Digital PTZ, digital zoom



Audio features

AGC automatic gain control

Network speaker pairing



Audio streaming

Configurable duplex:

One-way (simplex, half duplex)

Two-way (half duplex, full duplex)

Audio input

10-band graphic equalizer

Input for external unbalanced microphone, optional 5 V

microphone power

Digital input, optional 12 V ring power

Unbalanced line input

Audio output

Output via network speaker pairing

Audio encoding

24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G. 711 PCM 8 kHz,

G. 726 ADPCM 8 kHz, Opus 8/16/48 kHz

Configurable bit rate



Casing

IP66/IP67-, NEMA 4X-, and IK10-rated casing

Polycarbonate blend and aluminium

Color: white



Connectors

Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T

Audio: 3.5 mm mic/line in

I/O: Terminal block for 1 alarm input and 1 output (12 V DC output, max. load 25 mA)

Power: DC input

IR illumination

OptimizedIR with power-efficient, long-life 850 nm IR LEDs

Range of reach 40 m or more depending on the scene



Storage

Support for microSD/microSDHC/microSDXC card

Recording to network-attached storage (NAS)
