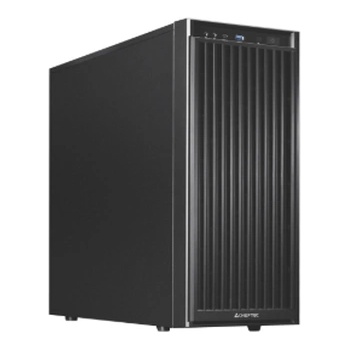

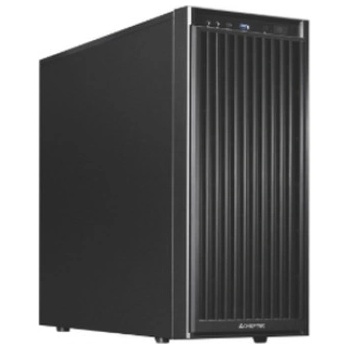

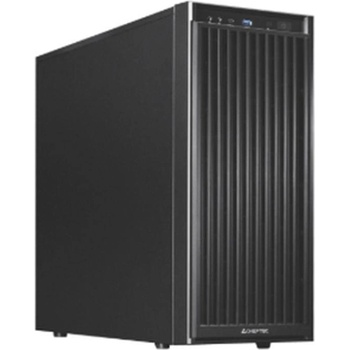

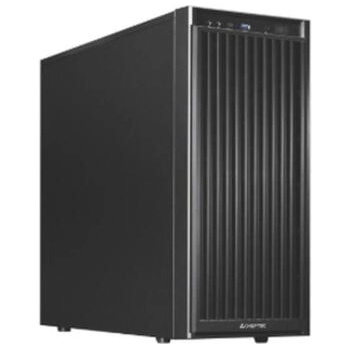

CHIEFTEC BW-01B-OP

Chieftec UNI Workstation Chassis

• Modern ATX workstation with a pre-installed 120mm PWM HDB fan
• Supports radiators up to 360mm
• Two tool-less 5.25" drive bays
• Features 3.5" and 2.5" tool-less trays for up to 10 SSD/HDD drives

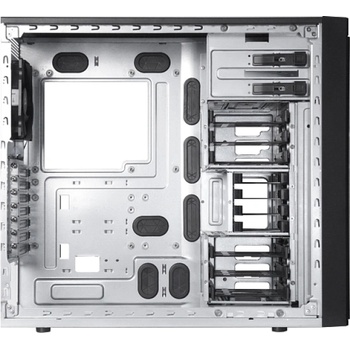

• Easy-to-remove storage cage system



The CHIEFTEC BW-01B-OP is a high-performance ATX workstation chassis that blends a timelessly elegant front panel with a modernly designed door and essential front I/O, including a USB Type-C port. It comes pre-installed with a 120mm PWM HDB fan for quiet and long-lasting operation. It offers an easy-to-remove storage cage system and meets the demands of digital content creators as well as their long-term data storage needs. The chassis features cable management holes with rubber grommets for a clean build and efficient airflow. Built to support modern workstation systems, the BW-01B-OP delivers both performance and style in a refined, professional chassis.



Color BlackMaterial 0.6mm SGCCMotherboard support Mini ITX, mATX, ATXDimension (DxWxH) 510mm x 200mm x 465mmWeight (without/with package) 8.23 kg / 9.51 kgDrive bay external 2 x 5.25Drive bay internal 6 x 3.5 and 4 x 2.5Power supply ATX PSU (optional, up to 160 mm length)Front I/O 1x USB Type C, 1 x USB3.0, Audio-out (AZALIA / HD-Audio), Mic-InScope of delivery Screw set, removable dust filter bottom, magnetic dust filter on topExpansion slots 7Cooling Compatibility Front: 2x 120mm / 2x 140mm fan
Rear: 1x 120mm PWM HDB fan (pre-installed)
Top: 3x 120mm / 3x 140mm fan / 240mm radiator / 360mm radiator (if the 5.25 tray on the top is left empty)CPU cooler height (max. ) 157mmVGA card length (max. ) 310mm (or 410mm, if 2.5 SSD cage is not installed)
