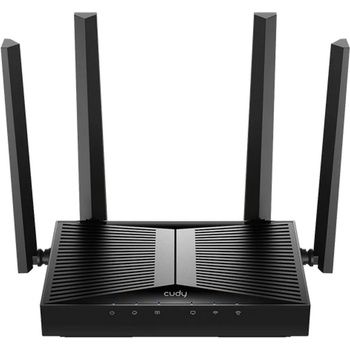

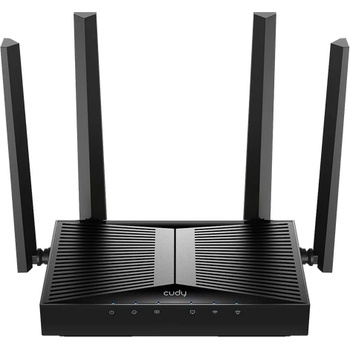

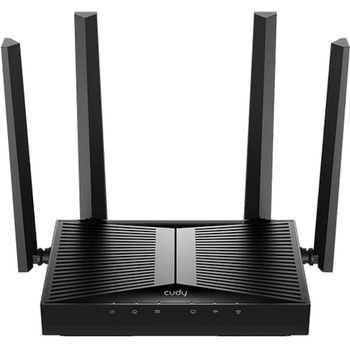

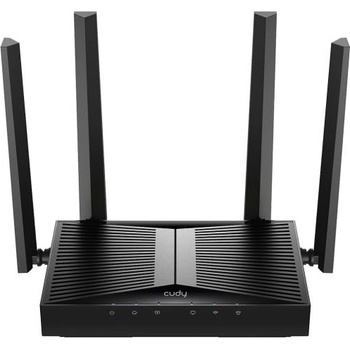

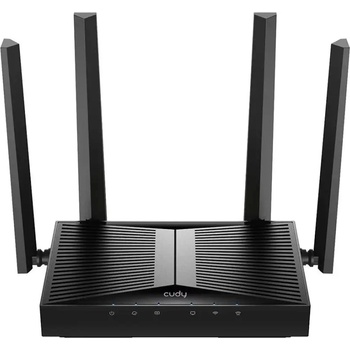

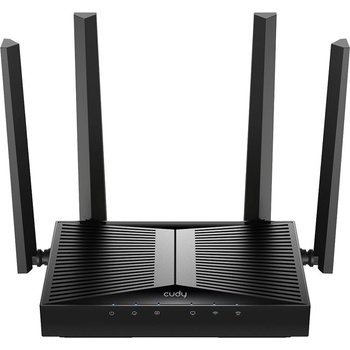

Cudy BE3600 (WR3600H)

Cudy WR3600H



Advanced Wi-Fi 7 Processing

Powerful CPU. Super-Responsive.

Feel the instantaneous response and smooth operation while browsing, streaming, and gaming on hundreds of devices. The advanced Quad-Core CPU and large 512 MB RAM delivers powerful performance.

Quad-Core

2 GHz ARM A7 CPU

512 MB

RAM

128 MB

ROM



 < /p>



Easy Setup and Versatile Management

Easy to Use

Upgrade your network with ease. An intuitive setup wizard guides you to config your new network.

Parental Controls

Create user profiles, set online times, and regulate online content for your loved ones.

VPN Server and Client

Enables work from home and secure remote access with the support of popular VPN protocols.

Cudy App

Features Cudy App and Cudy Cloud to facilitate your network management.





Specifications



Hardware Specs

CPU CPU Details 2.0 GHz Quad-Core, ARM Cortex-A7Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND  DDR/RAM 512 MB (4 Gbit) DDR3LWireless 5 GHz Wi-Fi Speed 2882 Mbps  2.4 GHz Wi-Fi Speed 688 Mbps  5 GHz Wi-Fi Streams 2 Spatial Streams  2.4 GHz Wi-Fi Streams 2 Spatial Streams  Wi-Fi Antennas 4× Fixed  FEM or PA/LNA

• 5 GHz: 2× External
• 2.4 GHz: 2× Internal

  Beamforming    Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.   Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')Interfaces 2.5G RJ45 Ports 1  Gigabit RJ45 Ports 4  Ethernet Notes The 2.5G port is WAN port, the Gigabit ports are LAN ports  LED

• Power
• Internet
• W AN
• LAN
• 2.4 GHz Wi-Fi
• 5 GHz Wi-Fi

  Physical Buttons

• WPS Button
• Reset Button

  Power Interfaces DC JackPower Power Methods DC  Power Input 12V⎓1A  Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 12V⎓1A  Max Power Consumption (W) 10WReliability Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CEMechanical Installation

• Desktop
• Wall-mount
< /ul>  Dimension Device:
183.3×109×38 mm
7.22×4.29×1.5 inches
Each Antenna:
175 mm
6.89 inches  Product Weight 332.0 g (11.71 oz. )



Software Specs

Wireless Wi-Fi Standards Wi-Fi 7  Max Wi-Fi Modulation 4K-QAM  Wi-Fi Efficiency
• MLO
• MRU
• Puncturi ng
• OFDMA
• MU-MIMO
• BSS Color
  Max Capacity 512  Recommended Client Upper Limit 200  Max Wi-Fi Channel Width 160 MHz  Wi-Fi Security WPA/WPA2/WPA3  Guest Network 2.4 GHz, 5 GHz  WPS  General Operation Modes
• Wi-Fi Router
• Access Point
• Range Extender
  Mesh Cudy Mesh  Mesh Backhaul
• Wireless Backhaul
• Wired Backhaul
  Multi-Band Backhaul    WAN Mode
• DHCP
• Static IP
• PPPOE
• PPTP
• L2 TP
  Notes Cudy Mesh and related backhaul features will be available with later firmware upgrade. Network QoS Per-User Rate Limiting  DHCP
• Address Reservation
• DHCP Client List
• Server
  IP Versions IPv4/IPv6  IPv6 Protocols
• Relay
• Dynamic (SLAAC/DHCPv6)
• Static (Fixed IP)
• Passthrough
• 464XLAT< /li>
• MAP-E
• DS-Lite
