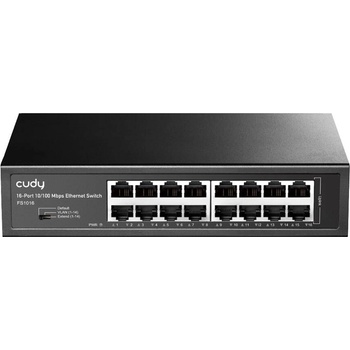

Cudy FS1016



VLAN Mode

VLAN mode for port isolation to enhance network security. With VLAN mode, downlink ports 1-14 can only communicate with uplink ports.

Extend Mode

Prolong the transmission distance of ports 1-22 to a maximum of 250 meters and simplify installation.

Power Saving

Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

Rackmount

Stan dard 1U rackmount design with included mounting kits simplifies your deployment.



Specifications



Interfaces 10/100 Mbps RJ45 Ports 16  Shielded RJ45 Port    Extend Mode Ports #1~#14  VLAN Mode Ports #1~#14  LED

• Power
• Link/ACT of Each Ethernet Port

  Physical Buttons VLAN/Default/Extend DIP SwitchPerformance Max Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 250 meters at 10 Mbps

  Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.   MAC Address Table 8192  Max Switching Capacity 3.2 Gbps  Max Forwarding Rate 2.38 Mpps  Jumbo Frame 2 KB  Packet Buffer 2 MbitPower Power Input Type AC Inlet  Basic Power Saving    Power Methods AC  Power Input 90-260V~ 50/60Hz  Max Power Consumption 2.0W  Idle Power Consumption 0.8WSwitching 802.3 Protocols

• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3x Flow Control

Reliability Grounding Methods

• Three-Prong Plug
• Grounding Point

  EMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV  Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensingMechanical Dimension 200×118×44 mm
7.87×4.65×1.73 inches  Product Weight 600 g (21.16 oz. )  Casing Material Metal  Installation

• Desktop
• Rackmount via Brackets
