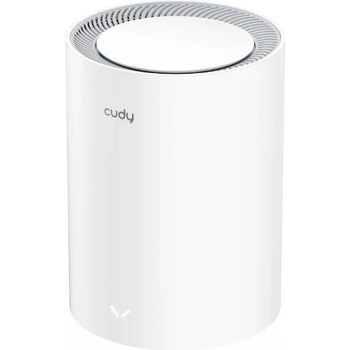

Cudy M3600 (1-Pack)

A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and three Gigabit ports, catering to large home with Gigabit Internet access.

• 4-Stream Dual-Band Wi-Fi 7
• 2882 Mbps + 688 Mbps Wi-Fi 1
• 3× Gigabit Ethernet Ports
• 200 Connected Devices 2
• Cudy Mesh, VPN Server and Client



Crea te Seamless and Everywhere Wi-Fi





Mode l Version M3600 1.0CPU CPU Details 2.0 GHz Quad-Core, ARM Cortex-A7Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND  DDR/RAM 512 MB (4 Gbit) DDR3LWireless 5 GHz Wi-Fi Speed 2882 Mbps  2.4 GHz Wi-Fi Speed 688 Mbps  5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)  2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)  Wi-Fi Antennas 4× Internal  FEM or PA/LNA

• 5 GHz: 2× External
• 2.4 GHz: 2× Internal

  Beamforming True  Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.   Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')  Indoor Coverage Reference 2 Pack: 200 m2 (2100 sq ft)
3 Pack: 270 m2 (2900 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room. Interfaces Gigabit RJ45 Ports 3  Ethernet Notes 1× WAN port, the rest are LAN ports  LED

• System
• Speed/Link/ACT of Ethernet Port

  Physical Buttons

• WPS Button
• Reset Button

  Power Input DC JackPower Power Methods DC  DC Input 12V 1A  Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC  Max Power Consumption (W) 9WReliability Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CEMechanical Installation Desktop  Dimension Φ110×154.5 mm
Φ4.33×6.08 inches
