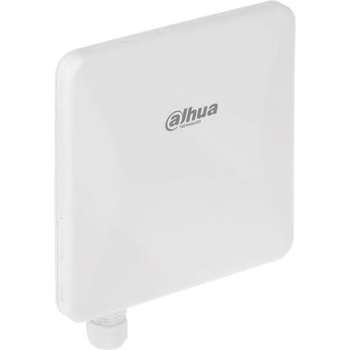

Dahua PFWB5-10AC

5GHz AC867 20dBi Outdoor Wireless CPE

> Integrated 5 GHz (2x2) MIMO radio

> Frequency 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)

> High performance and stability

> IP-66 standards rated enclosure

> Improved noise immunity

> TDMA ensures reliable communication

> Powerful OS

> Dual firmware

> Built-in tools including Site Survey, Link Test, Antenna Alignment, Spectrum Analyzer, Ping & Trace help in configuration and debugging

> Recommended for 0~5km PTP/PTMP wireless connection(as a station in PTMP link)

Software

Wireless Operating Modes

Access point (auto WDS), access point (TDMA), station (WDS, TDMA ), station (ARP NAT)

Wireless Techniques

Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)

Wireless Security

WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation

Wireless QoS

4 queues prioritization on TDMA

Network Operating Modes

Bridge, router iPv4, router IPv6

Network Techniques

Routing with and without NAT, VLAN

WAN Protocols

Static IP, DHCP client, PPPoE client

Services

DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog

Management

HTTP(S) GUI, SSH, SNMP read, Telnet

Tools

Site survey, link test, antenna alignment

Physical

Dimensions

185mm (length)× 185mm (width )× 81mm (height )

Weight

400 g

Mounting

Pole mounting bracket included

Power

Power Supply

12 - 24 VDC passive PoE (24 V passive PoE adapter is included in the package)

Power Source

100 – 240V AC

Power Consumption (max)

10W

Environmental

Operating Temperature

-30°C ~ +70°C

Humidity

0 ~ 90 % (non-condensing)

Management

System Monitoring

SNMP, Syslog, Web UI, DWMP

Regulatory

Certification

FCC/CE

Internal Antenna

Frequency Range

5.1 - 5.9 GHz

Gain

20 dBi

Polarization

Dual linear

Cross-pol Isolation

27 dBi

VSWR
