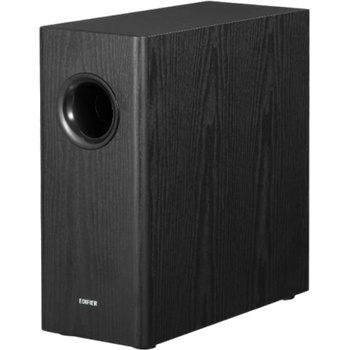

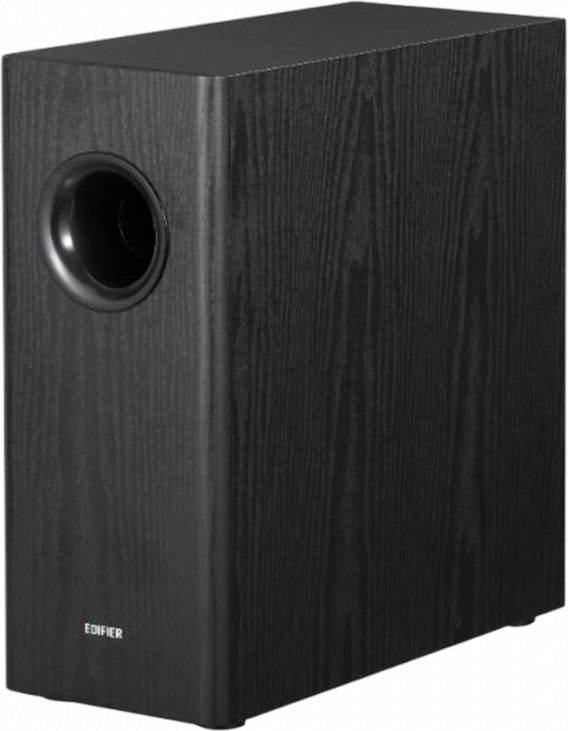

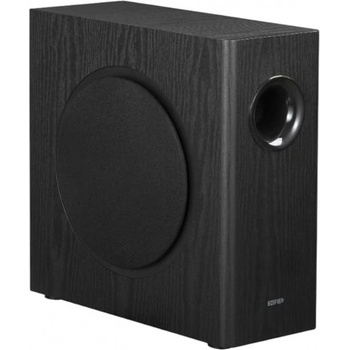

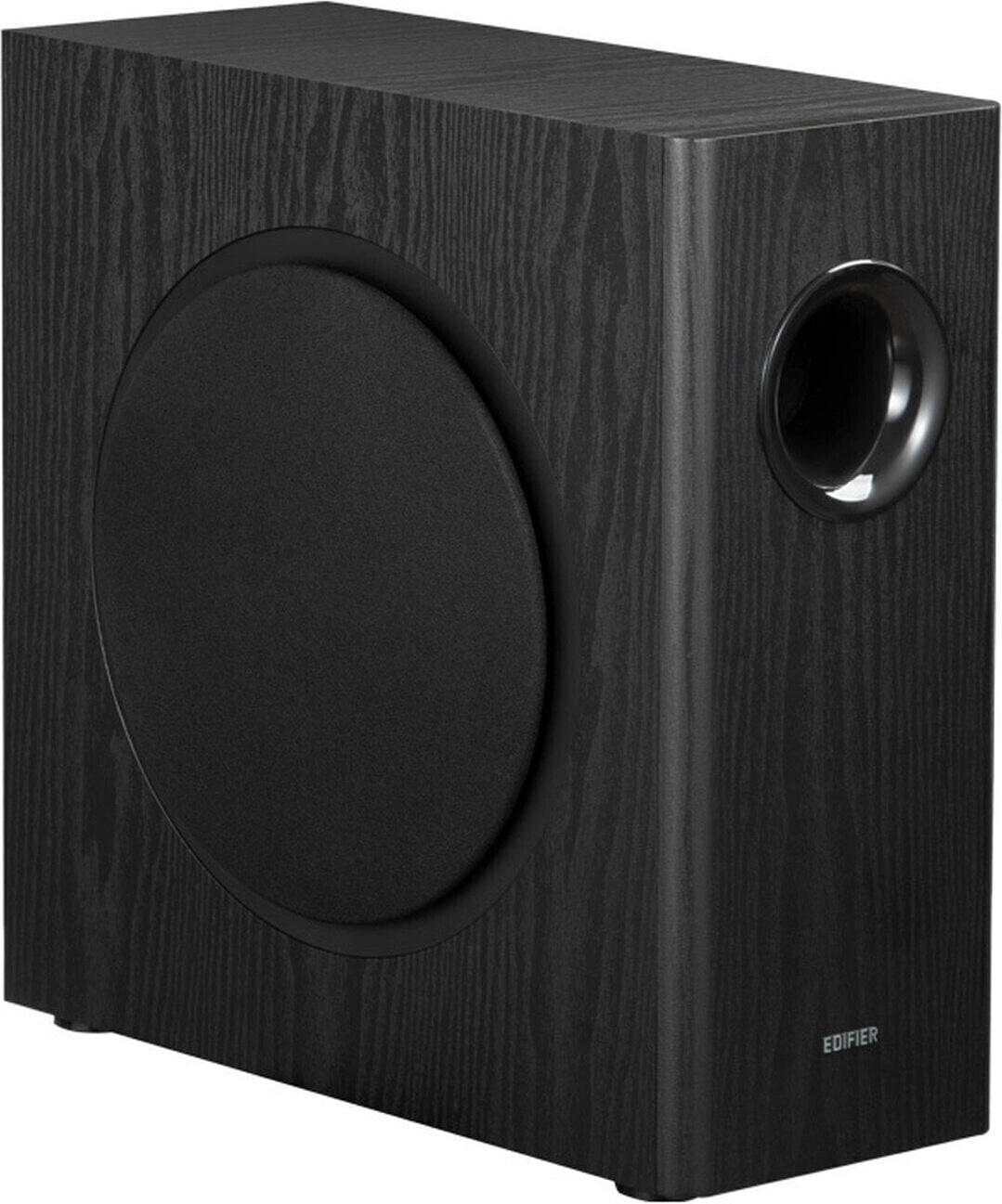

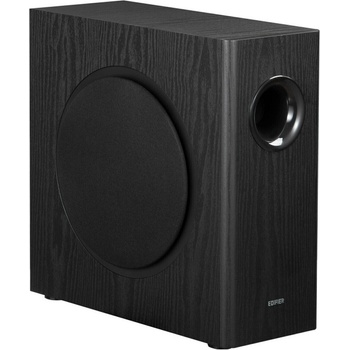

Edifier T5s Black

Edifier T5s

Deep and Powerful Bass

Equipped with an 8-inch long-throw woofer, this subwoofer delivers deep, room-filling bass with frequency response down to 35Hz. A high-efficiency switching power supply and a closed-loop Class-D amplifier provide 70W RMS output for powerful and consistent performance.

Precision Digital Signal Processing

Featuring a high-performance analog front end and digital amplifier, the subwoofer ensures accurate audio conversion and amplification. The built-in digital signal processor (DSP) enables precise low-pass filtering and phase alignment for seamless integration with your speaker system.

Low Distortion Design

An 18mm MDF (medium-density fiberboard) enclosure minimizes resonance and distortion, resulting in tight, clean, and well-defined bass response.

Versatile Connectivity

Signal In and Signal Out ports ensure broad compatibility with desktop speakers, bookshelf systems, and home theater receivers.

Method 1:

If your main speaker system includes a dedicated subwoofer output, connect it to the subwoofer's Signal In ports. Then connect the main speaker system directly to the audio source.

* Compatible EDIFIER speaker models: R1280Ts, R1280DBs, R1700BTs, R1850DB, R1855DB, R2750DB, R2850DB, S880DB MKII, D12, QR65

Method 2:

If your speaker system does not have a subwoofer port, connect its input to the subwoofer's Signal Out ports. Then connect the Signal In ports of the subwoofer to the audio source.

Auto Standby Function

To conserve energy, the subwoofer automatically enters standby mode after 15 minutes of inactivity and wakes when audio playback resumes.

Stylish and Space-Saving Design

Wrapped in a wood grain vinyl finish with a low-profile grille, this subwoofer blends seamlessly into any room décor. The slim vertical cabinet design allows for flexible placement in tight or unconventional spaces.

Specifications

Total Output Power (RMS):

70W

Driver:< /p>

8-inch (220 mm)

Frequency Response:

35Hz - 115Hz

Signal-to-Noise Ratio:

≥ 85dB (A)

Audio Inputs:

RCA

lnput Sensitivity:

150 ± 20mV

Dimensions (W x H x D):

399 mm × 400 mm × 170 mm

Net Weight:

10.38kg
