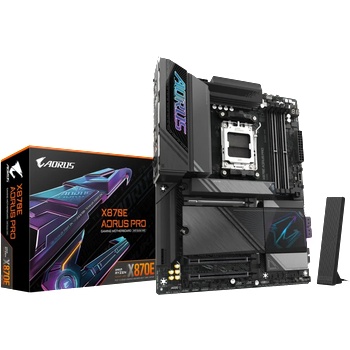

GIGABYTE X870E AORUS PRO 1.1

Технически детайли

Manufacturer:GIGABYTE
Wireless:Qualcomm® Wi-Fi 7 QCNCM865;- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11be 320MHz wireless standard;(Actual data rate may vary depending on environment and equipment. );* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10. );** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Memory type:Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
CPU's supported:AMD Socket AM5, support for:;AMD Ryzen 9000 Series Processors/;AMD Ryzen 8000 Series Processors/;AMD Ryzen 7000 Series Processors
Chipset:AMD X870E
Bluetooth:5.3
Graphics:Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4® Controller:;- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and HDR. ;Integrated Graphics Processor with AMD Radeon Graphics support:;- 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR. ;** Support for native HDMI 2.1 TMDS compatible ports. ;- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;* Support for HDMI 1.4 version
Audio:Realtek® ALC1220 CODEC;* The back panel line out jack supports DSD audio. ;High Definition Audio 2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. ;Support for S/PDIF Out
LAN:Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Сайт на производителя:https://www. gigabyte. com/Motherboard/X870E-AORUS-PRO-rev-10ht tps://www. gigabyte. com/Motherboard/X870E-AORUS-PRO-rev-10
