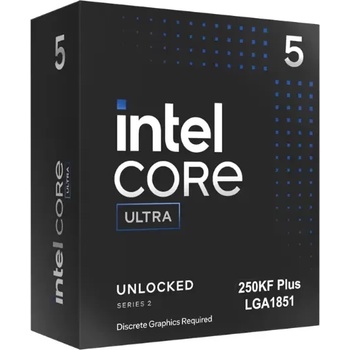

Intel Core Ultra 5 250KF Plus Box (BX80768250KFSA4V3)

, Intel® Core Ultra 5 processor 250KF Plus (30M Cache- up to 5.30 GHz)

Essentials
Product Collection, Intel® Core Ultra Processors (Series 2)
Code Name, Products formerly Arrow Lake
Vertical Segment, Desktop
Processor Number, 250KF PLUS
Overall Peak TOPS (Int8), 22

CPU Specifications

Total Cores, 18
# of Performance-cores, 6
# of Efficient-cores, 12
# of Low Power Efficient-cores, 0
Total Threads, 18
Max Turbo Frequency, 5.3 GHz
Performance-core Max Turbo Frequency, 5.3 GHz
Efficient-core Max Turbo Frequency, 4.6 GHz
Performance-core Base Frequency, 4.2 GHz
Efficient-core Base Frequency, 3.3 GHz
Cache, 30 MB Intel® Smart Cache
Total L2 Cache, 30 MB
Processor Base Power, 125 W
Maximum Turbo Power, 159 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU, Yes
AI Software Frameworks Supported by CPU, OpenVINO | WindowsML | DirectML | ONNX RT | WebNN
CPU Lithography, TSMC N3B

Memory Specifications
Max Memory Size (dependent on memory type), 256 GB
Memory Types, Up To DDR5 7200 MT/s
Max # of Memory Channels, 2
ECC Memory Supported‡, No

GPU Specifications
Graphics Output, n/a
Xe-cores, 0
Intel® Quick Sync Video, No
# of Displays Supported ‡, 0

NPU Specifications
NPU Name‡, Intel® AI Boost
NPU Peak TOPS (Int8), 13
Sparsity Support, Yes
Windows Studio Effects Support, Yes
AI Software Frameworks Supported by NPU, OpenVINO | WindowsML | DirectML | ONNX RT | WebNN

Expansion Options
Direct Media Interface (DMI) Revision, 4
Max # of DMI Lanes, 8
Intel® Thunderbolt 4, Yes
Scalability, 1S Only
PCI Express Revision, 5.0 and 4.0
PCI Express Configurations ‡, Up to 1x16+2x4 | 2x8+2x4 | 1x8+4x4
Max # of PCI Express Lanes, 24

Package Specifications
Sockets Supported, FCLGA1851
Thermal Solution Specification, PCG 2020A
Max Operating Temperature, 105 °C
Package Size, 45 mm x 37.5 mm

Advanced Technologies
Intel® Gaussian & Neural Accelerator, 3.5
Intel® Thread Director, Yes
Intel® Speed Shift Technology, Yes
Intel® Turbo Boost Technology ‡, 2.0
Intel® Hyper-Threading Technology ‡, No
Intel® 64 ‡, Yes
Instruction Set, 64-bit
Instruction Set Extensions, Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2
Idle States, Yes
Enhanced Intel SpeedStep® Technology, Yes
Thermal Monitoring Technologies, Yes
Intel® Volume Management Device (VMD), Yes

Security & Reliability
Intel® Threat Detection Technology (TDT), Yes
Intel® Active Management Technology (AMT) ‡, No
Intel® Standard Manageability (ISM) ‡, Yes
Intel® Remote Platform Erase (RPE) ‡, No
Intel® One-Click Recovery ‡, No
Intel® Secure Key, Yes
Intel® Control-Flow Enforcement Technology, Yes
Intel® Total Memory Encryption - Multi Key, No
Intel® AES New Instructions, Yes
Intel® Trusted Execution Technology ‡, Yes
Execute Disable Bit ‡, Yes
Intel® OS Guard, Yes
Intel® Boot Guard, Yes
Mode-based Execute Control (MBEC), Yes
Intel® Stable IT Platform Program (SIPP), No
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡, No
Intel® Virtualization Technology (VT-x) ‡, Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡, Yes
Intel® VT-x with Extended Page Tables (EPT) ‡, Yes
