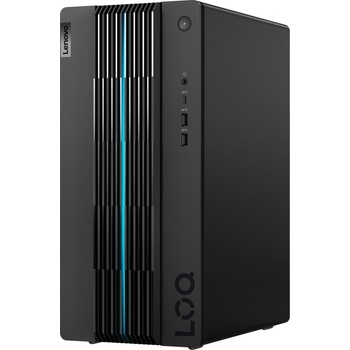

Lenovo LOQ 90VH00ABRM

LOQ 17IRB8

90VH00ABRM

PERFORMANCE

Processor



Intel Core i5-13400F, 10C (6P + 4E) / 16T, P-core 2.5 / 4.6GHz, E-core 1.8 / 3.3GHz, 20MBGraphics NVIDIA GeForce RTX 4060 8GB GDDR6Chipset Intel B760 ChipsetMemory 1x 16GB UDIMM DDR4-3200Memory Slots Two DDR4 UDIMM slots, dual-channel capable

Max Memory



Up to 32GB DDR4-3200Storage 512GB SSD M. 2 2280 PCIe 4.0x4 NVMeOptane Memory None

Storage Support



Up to three drives, 2x 3.5" HDD + 1x M. 2 SSD

3.5" HDD up to 2TB

M. 2 SSD up to 1TB

Card Reader NoneOptical NoneAudio Chip High Definition (HD) Audio, Realtek ALC623-CG codecSpeakers No speakersPower Supply 310W 92%Keyboard NoneMouse NoneExpansion Slots

• One PCIe 4.0 x16, full height
• One PCIe 3.0 x1, full height
• Two M. 2 slots (one for WLAN, one for SSD)

Case Color Raven BlackSystem Fan 1x Front + 1x RearForm Factor Tower (17L)

Dimensions (WxDxH)



170 x 304 x 376 mm

Weight



8.4 kgCONNECTIVITYEthernet Integrated 100/1000MWLAN + Bluetooth Wi-Fi 6E, 11ax 2x2 + BT5.1Front Ports

• 1x USB-C 3.2 Gen 1
• 1x USB 3.2 Gen 1
• 1x USB 3.2 Gen 2
• 1x headphone / microphone combo jack (3.5mm)

Rear Ports

• 4x USB 2.0
• 1x HDMI 1.4b
• 1x VGA
• 1x Ethernet (2.5GbE RJ-45)
• 1x audio-out (3.5mm)

SECURITY & PRIVACYSecurity Chip Firmware TPM 2.0 integrated in chipset
